The optical cable monitoring system organically combines optical cable monitoring, alarms, fault analysis, positioning, fault management, line maintenance, and line management to provide guarantee for the safe and efficient operation of optical cable networks. It can perform 24-hour automatic monitoring of communication optical cables and optical fiber Automatic switching protection, timely and accurate reporting of sudden optical cable faults, effectively shortening the duration of faults, promptly discovering hidden potential faults that have not yet occurred but will cause communication interruption, and providing accurate early warnings to achieve proactive maintenance and nip problems in the bud.

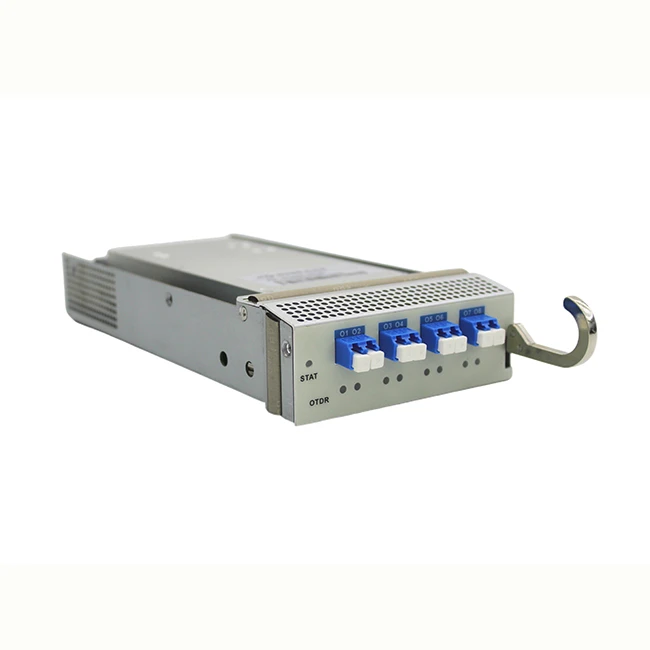

- Optical time domain reflectometry monitoring card, occupying 1/4 of the channel
- Supported working wavelength: 1625nm±10nm
- Supported pulse width: 5ns~20us
- Supports fiber polling monitoring in 8 directions
- Support online real-time monitoring
|
Name |
Parameter |
Unit |
|
Operating Wavelength |
15xx or 16xx |
nm |
|
OTDR Dynamic Range |
≥30 |
dB |
|
OTDR Pulse width range |
0. 1~20 |
us |
|
Maximum detection distance |
≥80 |
km |
|
OTDR Loss test accuracy |
±0.5 |
dB |
|
OTDR Distance test accuracy |
<20 |
m |
|
Sampling accPulse width rangeuracy |
0.05~8 |
m |
|
OTDR event blind spot |
<10 |
m |
|
OTDR Attenuation dead zone |
<20 |
m |
|
linearity |
±0.05 |
dB |
|
Maximum output optical power |
<17 |
dBm |
|
Monitoring port |
8 |
|
|
Size |
107W) x 254(D) x 42 (H) |
mm |
|
Operating Temperature |
-10~+60 |
℃ |
|
Storage Temperature |
-40~+85 |
℃ |
|
Relative Humidity |
5%~95% Non-condensing |
|
|
Power Consumption |
≤15 |
W |
