HTF 10G incoherent muxponder service card supports supports 8*125mbps port converging one 1.25G port or 8*1.25gbps
port converging one 10g port, and can convert the multiplexed/demultiplexed optical signals into WDM standard wavelength optical signals, so as to facilitate the wavelength division multiplexing of optical signals of different wavelengths by the combining unit, and realize the reverse process of the above process. It is suitable for 10G forward multiplexing in metropolitan area.

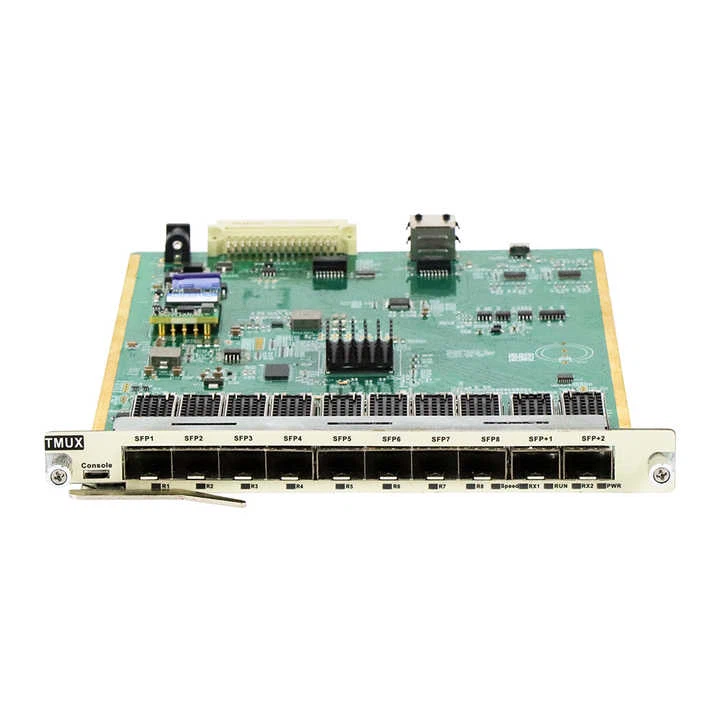

10G TMUX 8 x 1.25G convert to 10G
|
System Parameter |
Technical Indicator |
|
|
Model |
HT6000-10GTMUX |
|
|
Center Wavelength |
Support DWDM: C band 100GHz 40/48 waves |
|
|
Application |
8x1.25G↔10G & 8x125M↔1.25G |
|
|
Support service type |
Supports 8-channel FE/GE transparent service transmission |
|
|
10G Interface |
Client Side |
8 SFP hot-pluggable module |
|
Line Side |
2 SFP+ hot-pluggable SFP+1(Pri) Main router, line side aggregation main router port SFP+2(Sec) Backup router, line side aggregation backup router port |
|
|
Network management function |
Support real time monitoring of the port working state, including: transmitting optical power and receiving optical power, temperature, etc. Support port loopback and port shutdown |
|
|
Size |
191 (W) x 253 (D) x 20 (H) mm, occupy 1 slot ( Support HT6000 series chassis ) |
|
|
Environment |
Operating Temperature |
-10℃ ~ 60℃ |
|
Storage Temperature |
-40℃ ~ 80℃ |
|
|
Relative Humidity |
5% ~ 95% Non-condensing |
|
|
Power Consumption |
≤20W |
|
