The 400G OEO Transmitter supports 1xQSDP-DD client interface and 1xCFP2 line-side interface to support single-channel 400Gbps large-grain data transfers. The industry's most advanced coherent technology and FEC forward error correction coding technology enable high-capacity, long-distance high-performance transmission. Large dispersion tolerance: 20000ps.nm, Support channel wavelength tunable, Support real-time monitoring of OSNR and bit error rate. Coherent DWDM Optics can greatly increase the capacity and reach of an optical network, The 400G OEO models fits for HT6000 series CH04, CH08, CH20 chassis.
|
System Parameter |
Technical Indicator |
|
|
Model |
HT6000-OEO400G |
|
|
Center Wavelength |
DWDM 1529.5~1565.50nm |
|
|
Data Rate |
400Gbps |
|
|
400G Interface |
Client Side |
QSFP-DD 400G module |
|
Line Side |
CFP2 400Gbps coherent module |
|
|
FEC (gain, delay, BER threshold) |
200G-QPSK, 20% SDFEC, 2x100G |
Rx OSNR Tolerance: 13.8dB |
|
200G-16QAM-PS, 20% SDFEC, 2x100G |
Rx OSNR Tolerance: 15.8dB |
|
|
400G-16QAM-PS, 20% SDFEC, 4x100G |
Rx OSNR Tolerance: 21dB |
|
|
NMS |
TELNET, SNMP, WEB |
|
|
Size |
191 (W) x 253 (D) x 42 (H) mm |
|
|
Environment |
Operating Temperature |
-10℃ ~ 60℃ |
|
Storage Temperature |
-40℃ ~ 80℃ |
|
|
Relative Humidity |
5% ~ 95% Non-condensing |
|
|
Power Consumption |
≤50W |
|
HTF HT6000 Series Chassis support multiple service board intermixing:
|
HTF HT6000 DWDM Series Product |
|||
|
HT6000 Chassis Optional (Support dual AC+ dual DC protection) |
1U 19-inch CH04 |
1 network management slot |
3 universal service slots |
|
2U 19-inch CH08 |
1 network management slot |
7 universal service slots |
|
|
5U 19-inch CH20 |
1 network management slot |
19 universal service slots |
|
|
NMS Board |
HTF Network Control Management Board |
||
|

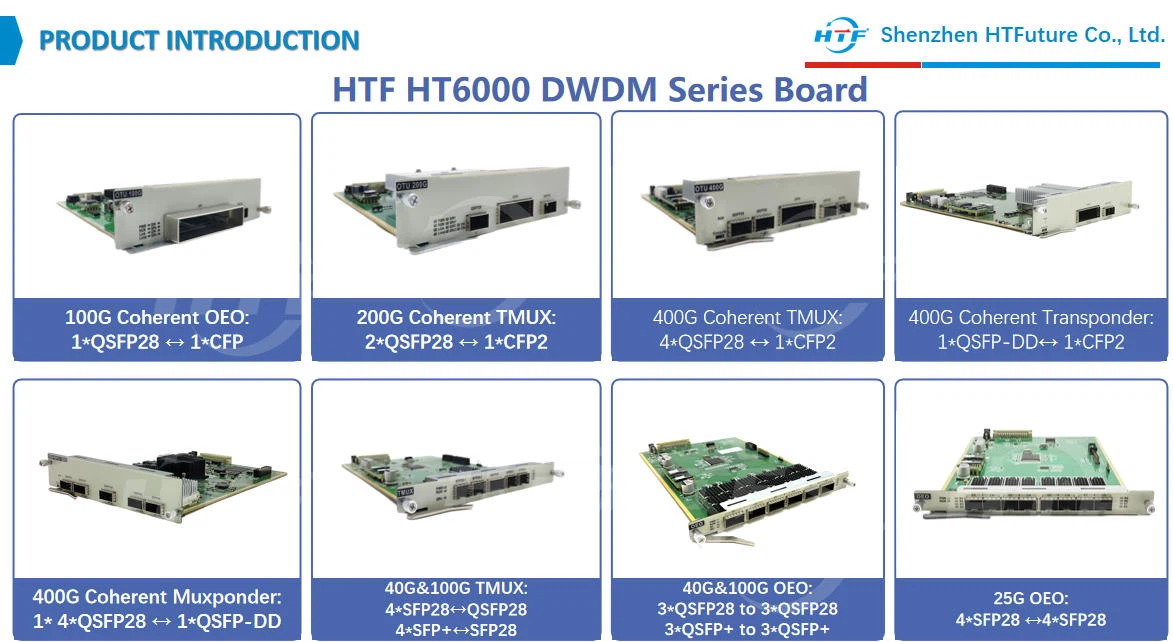

HTF Muxponder Board |
400G Coherent TMUX: 4*QSFP28 to 1*CFP2 |
||
|
400G Muxponder: 4*QSFP28 to 1*QSFP-DD |
|||
|
200G Coherent TMUX: 2*QSFP28 to 1*CFP2 |
|||
|
40G&100G TMUX: 4*SFP28↔QSFP28 or 4*SFP+↔SFP28 |
|||
|
10G TMUX: 8*1.25G↔10G or 8*100M↔1.25G |
|||
|
HTF Transponder Board Optical Relay Amplification System |
400G Coherent OEO/Transponder: 1*QSFP-DD to 1*CFP2 |
||
|
100G Coherent OEO: 1*QSFP28 to 1*CFP |
|||
|
40G&100G OEO: 3*QSFP28 to 3*QSFP28 or 3*QSFP+ to 3*QSFP+ |
|||
|
25G OTU: 4*SFP28↔4*SFP28 |
|||
|
10G OEO: 4*SFP+↔4*SFP+ |
|||
|
HTF Protection Board |
10G OCP (Optical Channel Protection): 2*SFP+↔2*SFP+ |
||
|
OLP: Optical Line Protection(1+1, 1:1, dual or single fiber OLP options ) |
|||
|
Optical Amplification System Board |
EDFA Board: erbium-doped fiber amplification (BA LA PA) |
||
|
RFA: Raman fiber amply board |
|||
|
SOA: 100G Optical Amplification System |
|||
|
Dispersion Compensation Board |
DCM: Dispersion Compensation Module |
||
|

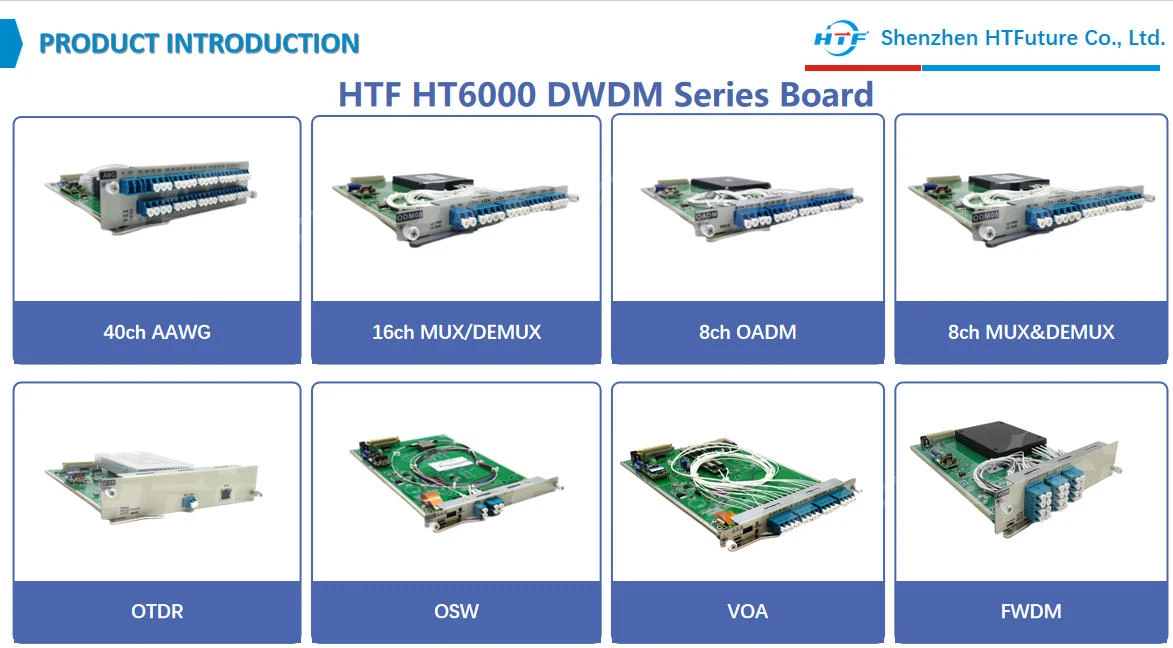

HTF MUX DEMUX Board |
MDU: 1~16 Wavelengths Multiplexing/Demultiplexing |
||
|
AWG: 40/48 Waves Multiplexing/Demultiplexing Card |
|||
|
OADM: Optical Add Drop Multiplexing Card |
|||
|
Optical Cable Monitoring System |
OTDR, OSW, FWDM, OPD, OPC etc |
||
|
HTF Customized Board |
VOA, OSC, PLC/FBT Optical Splitter, WSS etc |
||
Expansion of fiber optic network capacity must be fast to effectively meet evolving bandwidth needs. HTF's DWDM/OTN products increase network capacity per wavelength, improving spectral efficiency and reducing cost per bit in DCI, metro, and long-haul applications. The use of pluggable modules easily increases capacity, significantly reduces power consumption, simplifies maintenance and support, and enables real pay-as-you-grow architecture.
HTF integrated DWDM solutions include mux/demux, amplifiers, OLP/OTDR/WSS/optical switch etc, The plug-and-play optics lower maintenance costs and maximize the value of existing infrastructure and connectivity.
If you have optic network project need upgrade transmission capacity, welcome to cotact HTF team to customized the suitable solution for you.
