High Quality and Cost-effective 9/125μm Single Mode Fiber Optic Cable

LC Singlemode 9/125um Simplex Optical Fiber Patch Cable with 2.0mm LSZH Jacket.

This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.

LC optical fiber connector is a new type of connector developed to meet the requirements of customers for miniaturization and high-density connection.

It compresses the space needed by panel, wallboard and distribution box in the whole network, making it occupy half of the space of traditional ST and SC connectors.

Specification

Parameter	Unit	FC,SC,LC			ST,MU,MTRJ
		SM		MM	SM	MM
		UPC	APC	UPC	UPC	UPC
Insertion Loss	dB	≤0.2			≤0.2
Return Loss	dB	≥55	≥65	≥35	≥55	≥35
Repeatability	dB	△IL≤0.2 △RL≥5		△IL≤0.1	△IL≤0.1	△IL≤0.1
Durability	dB	△IL≤0.2 △RL≥5		△IL≤0.1	△IL≤0.1	△IL≤0.1
Exchangeability	dB	△IL≤0.2 △RL≥5		△IL≤0.1	△IL≤0.1	△IL≤0.1
Compressive Strength	N	F＞300
Operation life Span	Times	n＞1000
Operation Temperature	℃	-40~75
Storage Temperature	℃	-45~85
Cable Diameter	cm	0.9,2.0,3.0 or specified

Performance index

product type	LC-LC Single mode	LC-LC Multimode
Insertion loss	≤0.20	≤0.30
Insertion loss	≤0.30	≤0.30
Repeatability (DB)	≤0.10	≤0.10
Interchangeability (DB)	≤0.20	≤0.20
Operating temperature (OC)	-40～+80	-40～+80
Storage temperature (OC)	-40～+85	-40～+85
Number of fiber cores	Simplex or Duplex	Duplex
Number of dials	1000	1000

Optical fiber jumper is an essential component in network connection. It is a kind of optical cable with connector plug at both ends, which is used to connect equipment and optical fiber wiring link. According to different joint types, optical fiber jumper can be divided into LC optical fiber jumper, SC optical fiber jumper, FC optical fiber jumper, ST optical fiber jumper, etc.

Among them, LC optical fiber jumper is the most common and widely used in wiring. LC optical fiber jumper is usually connected with optical modules to realize the interconnection with equipment. Different equipment has different connection requirements. Therefore, LC connector will be matched with other types of connectors to meet the specific requirements in various scenarios.

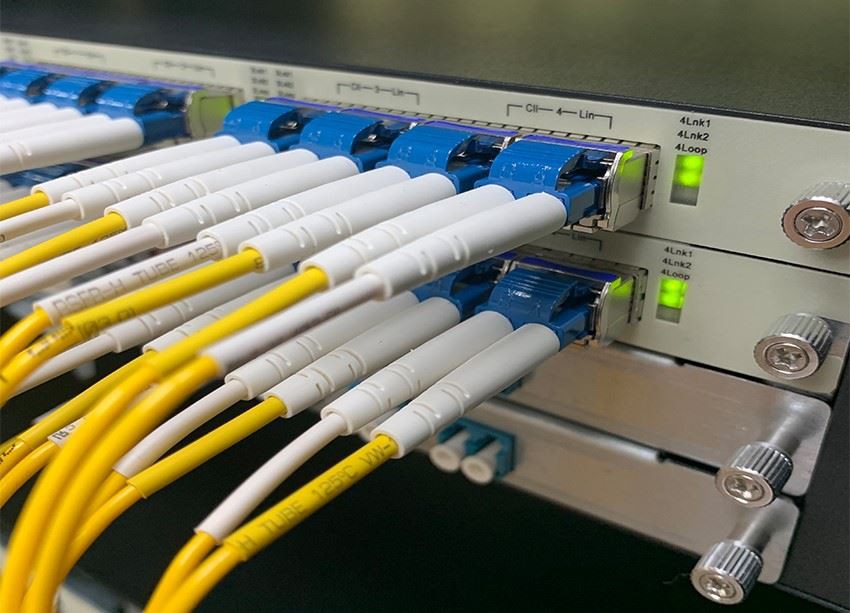

Connection of modules
