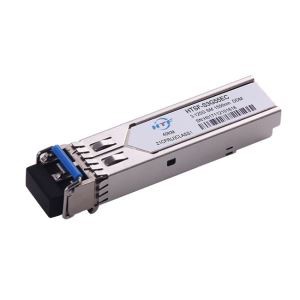

Single mode transceiver over multimode fiber BIDI 1.25G 5531Ex SFP Module
Model type | SFP-1.25G-BIDI-40KM | Brand | HTF |
Encapsulation | SFP | Data Rate | 1.25Gbs |
Wavelength | 1550nm-TX / 1310nm-RX 1310nm-TX / 1550nm-RX | Reach | 40KM |
Cable Type | SMF（9/125µm） | Interface | BIDI SC optical connector |
Tx power | -5~0dBm | Rx Sens | <-24dBm |
Optical Components | 1550nm DFB laser transmitter and PIN photo-detector | ||
Applications
△Switch to Switch Interface
△Gigabit Ethernet
△Switched Backplane Applications
△Router/Server Interface
△Other Optical Links
Specific solutions for the SFP optical module of gigabit Ethernet are as follows:
1.Short-range network wiring
The 1000base-t SFP optical module supports 10/100/1000 adaptive and Auto MDI/MDIX, which can be used with 5 kinds of non-shielded network jumpers. The transmission distance can reach 100m.
The 1000base-sx SFP optical module is compatible with the IEEE 802.3z 1000base-sx standard and can be used in a 50-meter / 62.5-meter multimode fiber link with a maximum transmission distance of 550m.
2. Long distance network wiring
The 1000base-ex and 1000base-zx SFP optical modules can be used in combination with single-mode optical fibers, which are suitable for long-distance network transmission. The transmission distance of 1000base-ex SFP optical module can reach 40km, and that of 1000base-zx SFP optical module can reach 80km.
Deliver, Shipping and Serving
Big capability of manufacture and fast delivery time
With experienced technical team supporting
Customized label and package, ODM and OEM service offered
100% new materials for production and 100% reliable quality
FAQ
Question: what should I pay attention to when choosing the optoelectronic module?
Answer: first, the compatibility of the optoelectronic module; Second, the transmission rate and distance of the optoelectronic module; Third, the operating temperature of the optoelectronic module, the general commercial temperature is 0~70℃, industrial temperature is -45~80℃; Fourth, the service life of the optoelectronic module; In addition, the brand of the module is also very important, which is related to the after-sales service.
