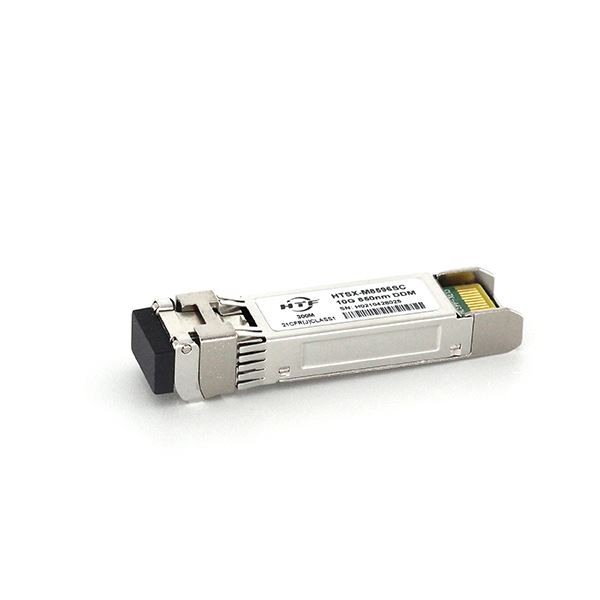

10G SFP+ 850nm Multi-mode Optical Transceiver Module
Features
•Up to 11.3Gb/s data links
•850nm VCSEL laser and PIN receiver
•Up to 300m on 50/125µm MMF
•Hot-pluggable SFP+ footprint
•Duplex LC/UPC type pluggable optical interface
•Metal enclosure, for lower EMI
•RoHS compliant and lead-free
•Support Digital Diagnostic Monitoring interface
•Single +3.3V power supply
•Compliant with SFF+MSA and SFF8472
•Case operating temperature
Commercial: 0 ~ +70oC
Extended: -10 ~ +80oC
Industrial: -40 ~ +85oC
Applications
•10GBASE-SR/SW & 10G Ethernet
•SDH STM64
•Other Optical Links
Part Number Ordering Information
| Part Number | Data Rate (Gb/s) | Wavelength (nm) | transmission Distance(m) | Temperature (oC) (Operating Case) |
| HTSX-M8596SC | 10.3125 | 850 | 300m MMF | 0~70 commercial |
| HTSX-M8596SE | 10.3125 | 850 | 300m MMF | -10~80 Extended |
| HTSX-M8596SI | 10.3125 | 850 | 300m MMF | -40~85 Industrial |
Optical Characteristics
| Parameter | Symbol | Min. | Typical | Max | Unit | Notes |
| transmitter | ||||||
| Center Wavelength | λC | 840 | 850 | 860 | nm | 1 |
| Optical Spectral Width | ∆λ | 0.85 | nm | |||
| Average Optical Power | PAVG | -6 | -1 | dBm | 2 | |
| Optical Extinction Ratio | ER | 3.0 | dB | |||
| transmitter OFF Output Power | Poff | -30 | dBm | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| transmitter Eye Mask | Compliant with IEEE802.3ae | |||||
| Receiver | ||||||
| Center Wavelength | λC | 770 | 850 | 860 | nm | |
| Receiver Sensitivity (Average Power) | Sen. | -10 | dBm | 3 | ||
| Input Saturation Power (overload) | Psat | 0.5 | dBm | |||
| LOS Assert | LOSA | -30 | dBm | |||
| LOS De-assert | LOSD | -14 | dBm | |||
| LOS Hysteresis | LOSH | 0.5 | dB | |||
