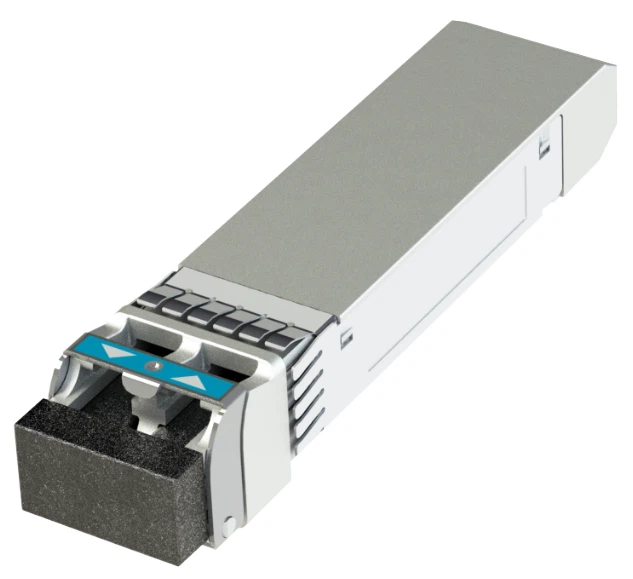

32GFC SFP28 1310nm 10km

32GFC SFP28 1310nm 10km
Details:
32GFC SFP28 transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the DFB laser and the PIN photo-detector. The module data link up to 10km in 9/125um single mode fiber. The module optical connection is duplex LC and shall be compatible with SFP+ 28Gbps and backward compatible with legacy 10G SFP+ pluggable. The SFP28 LR module is a dual directional device with a transmitter and receiver plus a control management interface (2-wire interface) in the same physical package. 2-wire interface is used for serial ID, digital diagnostics and module control function.
Send Inquiry
Description
Send Inquiry

dwdm 5g

Features

`Up to 28.05Gb/s data links

`1310nm DFB laser and PIN receiver

`Up to 10km on 9/125um SMF

`Hot-pluggable SFP footprint

`Support Digital Monitoring interface

`Class 1 laser safety certified

`Cost effective SFP28 solution, enables higher port densities and greater bandwidth

`RoHS-10 compliant and lead-free

`Single +3.3V power supply

`2-wire interface for management specifications compliant with SFF-8472 digital diagnostic monitoring interface for optical transceivers

`All-metal housing for superior EMI performance

`Case operating temperature

`Commercial: 0 ~ +70oC

`Extended: -10 ~ +80oC

`Industrial: -40 ~ +85oC

Applications

`High-speed storage area networks

`Computer cluster cross-connect

`Custom high-speed data pipes

`Inter Rack Connection



product-643-196
