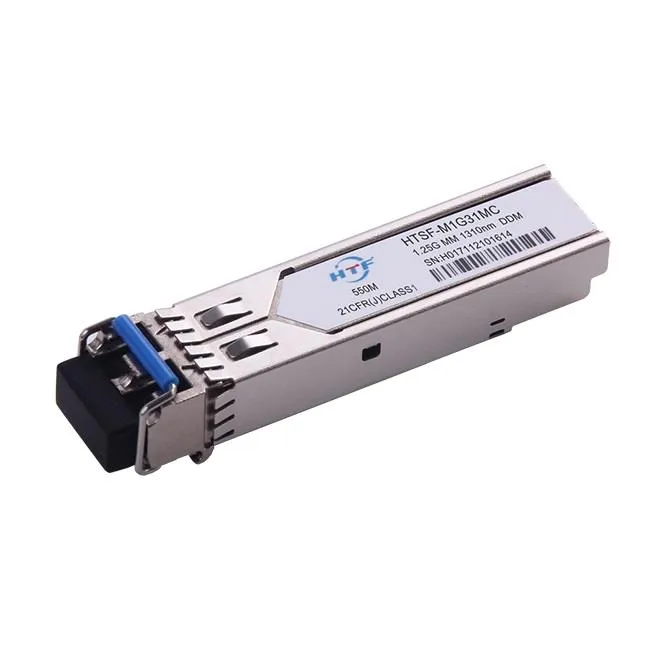

General Description
The module data link up to 550m in 50/125um multi-mode fiber.
Model type | SFP-1.25G | Brand | HTFuture |
Encapsulation | SFP | Data Rate | 1250Mb/s |
Wavelength | 1310nm | Reach | 550M |
Interface | Duplex LC | LD | FP |
Cable Type | MMF | DDM Support | Yes |
Tx power | -9~-3dBm | Rx Sens | <-19dBm |
Temperature | 0~70°C (32~158°F) | Quality guarantee | 3 years |
Features
● Up to 1.25Gb/s data links
● 1310nm FP laser transmitter and PIN photo-detector
● Up to 550m on 50/125um MMF
● Hot-pluggable SFP footprint
● Duplex LC/UPC type pluggable optical interface
● Low power dissipation
● Metal enclosure, for lower EMI
● RoHS compliant and lead-free
● Support Digital Diagnostic Monitoring interface
● Single +3.3V power supply
● Compliant with SFF-8472
● Case operating temperature
Commercial: 0 ~ +70oC
Extended: -10 ~ +80oC
Industrial: -40 ~ +85oC
Applications
● Switch to Switch Interface
● 1xFiber channel Application
● Gigabit Ethernet
● Switched Backplane Applications
● Router/Server Interface
● Other Optical Links
Mechanical Dimensions
FAQ
1. Question: "This is 1000m sfp-t transceiver, not 10/100/1000m multi-rate sfp-t." does this only work at gigabit? Does it not work at 100baset at all?
Answer: Yes, it only works at gigabit.
2. Question: Will this work with the Juniper?
Answer: Yes, it will.
3. Question: Is it possi le to order 400 to 500 of these?
Answer: Of course! Please contact us at "sales2@htfuture.com", we will offer you a reduced price for this bulk order. Look forward to cooperate with you.
4. Question: Does it works with any fiber cable such as om1, om2, om3, om4 multimode fiber cables?
Answer: Yes, OM1, OM2, OM3, OM4 LC to LC duplex multimode fiber cables can all work with this module.
5. Question: Is it possible to send to Brazil?
Answer: Yes, of course.
