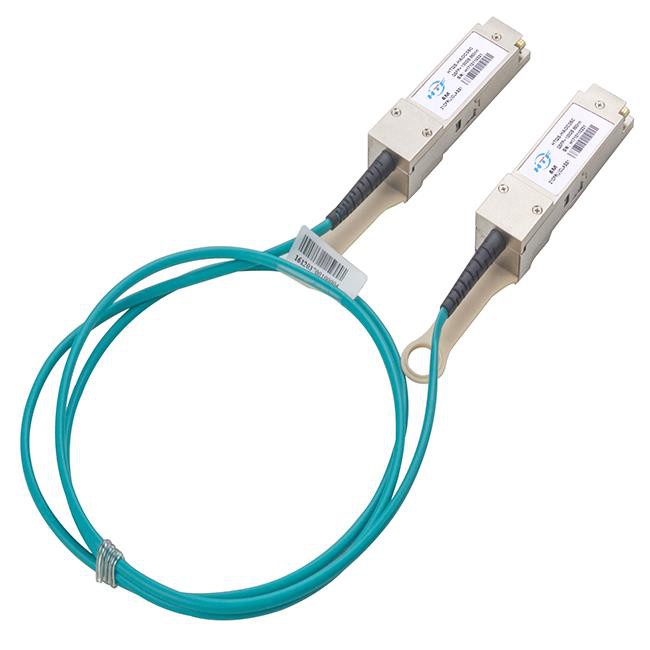

Features
● Full duplex 4 channel 850nm parallel active optical cable
● Up to 11.1Gbps Data rate per channel
● Maximum link length of 100m links on OM3 multimode fiber
● Or 150m links on OM4 multimode fiber
● High Reliability 850nm VCSEL technology
● Electrically hot-pluggable
● Digital diagnostic QSFP+ MSA compliant
● Case operating temperature range:0°C to 70°C
● Power dissipation < 1.5 W per cable end
● Compliant to QSFP+ MSA
● RoHS/CE/FCC Compliant
Applications
● 40G Ethernet
● Infiniband QDR
● Fiber channel
● HPC Interconnections
Specifications
Parameter | Unit | Value | Notes |
Module Form Factor | QSFP+ | ||
Number of Lanes | 4 Tx /Rx | ||
Maximum Aggregate Data Rate | Gb/s | 42.0 | |
Maximum Data Rate per Lane | Gb/s | 10.5 | |
Standard Cable Lengths | meters | 3, 5, 7, 10, 50, 100 | Other lengths, please contact sales |
Protocols Supported | Typical applications include Infiniband, Fiber Channel, 40G Ethernet | ||
Electrical Interface and Pin-out | 38-pin edge connector | Pin-out as defined by the QSFP+ MSA | |
Standard Optical Cable Type | Multimode ribbon fiber cable assembly, riser-rated | ||
Maximum Power Consumption/End | W | 1.5 | |
Management Interface | Serial, I2C-based, 400 kHz maximum frequency | As defined by the QSFP+ MSA |
Electrical Characteristics
Parameter | Symbol | Min | Typ | Max | Unit | NOTE |
Supply Voltage | Vcc1,VccTx,VccRx | 3.14 | 3.3 | 3.46 | V | |
Supply Current | Icc | 450 | mA | |||
Transmitter | ||||||
Differential data input swing | Vin,pp | 180 | 1000 | mV | Note1 | |
Single ended input voltage tolerance | VinT | -0.3 | 4.0 | V | ||
Receiver | ||||||
Differential data output swing | Vout,pp | 300 | 850 | mV | Note2 | |
Single-ended output voltage | -0.3 | 4.0 | V |
FAQ
Q：How can I get a AOC sample?
A：You need place sample order, we will arrange the sample production for you.
Q：Could you do design for us?
A：Yes, we can customize for you, if you provide us the content and tell us where to put.
Q：What’s your products’ advantages?
1) Good quality and competitive prices.
2) Strictly quality control when producing.
3) Professional team work, from design, development, producing, assemble, packing and shipping.
4) After-sale services, if there is quality problem, we will offer you replacement for defective quantity.
