Features
4 Channels 100 GHz DWDM combined Multiplexer and Demultiplexer (MUX & DEMUX)
Standalone compact form factor-1U, Installation friendly
Plug'n play: requires no configuration
Green product: completely passive, needs no power and no cooling
Low insertion loss, insertion loss ≤1.8dB,
High channel isolation:adjacent isolation ≥30dB; non-adjacent isolation ≥40dB
Compatible with 100GHz ITU Grid DWDM active transponders and transceivers from Htfuture and other third parties
High reliability, MTBF of 100 years
Designed for Telcordia / Bellcore GR-120
Applications
DWDM transmission
Metro and long-haul networks
Point-to-point DWDM fiber optimization
Linear add/drop DWDM fiber optimization
Optical Specification
Parameter | 4 Channel | ||
MUX | DEMUX | ||
Channel Wavelength (nm) | ITU 100GHz Grid | ||
Center wavelength Accuracy (nm) | ±0.1 | ||
Channel Spacing (nm) | 0.8nm (100GHz) | ||
Channel Passband (@-0.5dB bandwidth (nm) | >0.25 | ||
Insertion Loss (dB) | ≤1.8 | ||
Channel Uniformity (dB) | ≤0.6 | ||
Channel Ripple (dB) | 0.3 | ||
Isolation (dB) | Adjacent | N/A | >30 |
Non-adjacent | N/A | >40 | |
Inertion Loss Temperature Sensitivity (dB/℃) | <0.005 | ||
Wavelength Temperature Shifting (nm/℃) | <0.002 | ||
Polarization Dependent Loss (dB) | <0.1 | ||
Polarization Mode Dispersion | <0.1 | ||
Directivity (dB) | >50 | ||
Return Loss (dB) | >45 | ||
Maximum Power Handling (mW) | 300 | ||
Passive DWDM MUX/DEMUX module
| Model | Channel | ILoss(dB) | Isolation(dB) | Wavelength (nm) | ||
MU/DMU | MU+DMU | Adjacent | Non-adjacent | |||
HT6000-ODM04 | 4CH MUX and DEMUX | ≤1.8 | ≤2.5 | 30 | 40 | 100GHZ ITUT Grid C-Band |
HT6000-OMU04 | 4CH MUX | ≤1.8 | ≤2.5 | 30 | 40 | 100GHZ ITUT Grid C-Band |
HT6000-ODU04 | 4CH DEMUX | ≤1.8 | ≤2.5 | 30 | 40 | 100GHZ ITUT Grid C-Band |

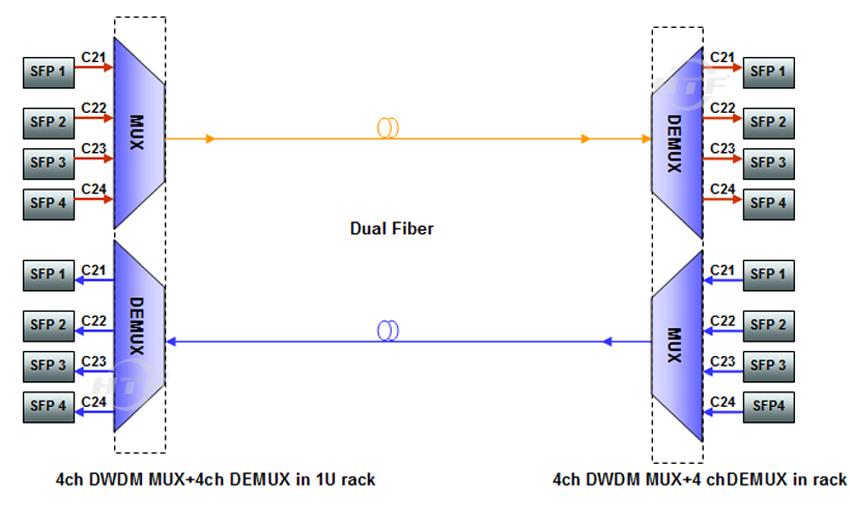

How dual fiber 4ch DWDM Mux Demux connect?
Ordering Information
Example: HTFuture DWDM 100GHz Mux 4Channels (pls according to above channels list), 900um fiber, 0.5meter, with SC/UPC Connector, ABS Box packing.
Channel Spacing | Configuration | No. of Channels | Fiber Type | Fiber Length | Connector | Packing |
1=100GHz | M=Mux | 04=4Channel | 0=250um | 0=0.5m | 0=None | A=ABS Box |
Warmly welcome to our factory. OEM/ODM is supported.
