General Description
The module consists of CWDM DFB Laser, PIN and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
Form Type | BIDI-XFP-10G-SM-LR | Brand | HTFuture |
Encapsulation | XFP | Data Rate | 11.1Gb/s |
Wavelength | TX1270nm/RX1330nm TX1330nm/RX1270nm | Reach | 10km |
Interface | BIDI LC | LD | DFB |
Cable Type | SMF | DDM Support | Yes |
TX Power | -6~-1dBm | Rx Sens | <-14.4dBm |
Temperature | 0 to 70°C (32 to 158°F) | Quality guarantee | 3 years |
Features
● Up to 11.1Gb/s data rate
● 1270nm DFB laser and PIN receiver for HTSX-B273396Lx
● 1330nm DFB laser and PIN receiver for HTSX-B332796Lx
● 2-wire interface with integrated Digital Diagnostic monitoring
● Up to 10km transmission on SMF
● BIDI LC optical connector
● Single +3.3V power supply
● Metal enclosure, for lower EMI
● Maximum power consumption 1.5W
● RoHS-6 compliant and lead-free
● SFF-8472 MSA compliant &SFF-8431
● Operating case temperature
Commercial: 0 ~ 70℃

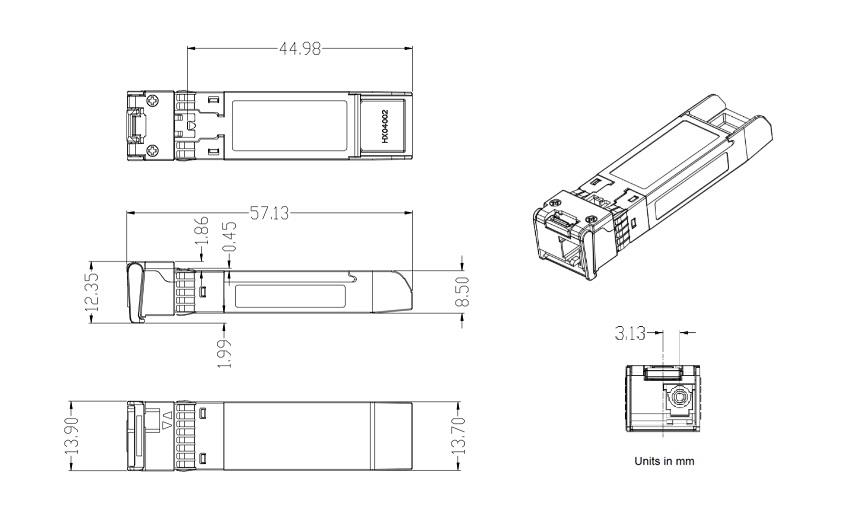

Mechanical Dimensions
FAQ
1. Question: If i wanted to connect a brocade to a netgear using a sfp+ module, if i mixed the brocade and netgear transceivers, they should work right?
Answer: As long as both devices recognize the SFP+ modules installed, i.e. sending/receiving light, then connectivity will work between the two using Ethernet standards.
2. Question: Will this works with single mode or multi-mode or both?
Answer: 10G LR is single mode, and the wavelength confirms that.
3. Question: Is it possi le to order 400 to 500 of these?
Answer: Of course! Please contact us at "sales2@htfuture.com", we will offer you a reduced price for this bulk order. Look forward to cooperate with you.
4. Question: Wills it Compatibility with Huawei?
Answer: Yes, it will.
5. Question: Can the SFP and SFP+ module slots on the 2 X 10G/4 X 1G uplink type be used in combination?
Answer: Yes. This combination provides up to 22Gbps of uplink bandwidth.
6. Question: What is XENPAK?
Answer: XENPAK is a multisource agreement (MSA), instigated by Agilent Technologies and Agere Systems, that defines a fiber-optic or wired transceiver module which conforms to the 10 Gigabit Ethernet (10GbE) standard of the Institute of Electrical and Electronics Engineers (IEEE) 802.3 working group. The MSA group received input from both transceiver and equipment manufacturers during the definition process. XENPAK has been replaced by more compact devices providing the same functionality.
