Features
△Supports 9.95Gb/s to 11.3Gb/s bit rates
△Up to 80km on 9/125µm SMF
△Support Digital Diagnostic Monitoring interface
△Hot-pluggable XFP footprint
△No Reference Clock required
△Metal enclosure, for lower EMI
△Supports Line-side and XFI loopback
△Standard bail release mechanism
△Power dissipation <3.5W
△Case operating temperature
Commercial: 0 ~ +70oC
Part Number Ordering Information
Part Number | Data Rate (Gb/s) | Wavelength (nm) | Transmission Distance(m) | Temperature (oC) (Operating Case) |
HTXF-DT96-80C | 10.3125 | Refer to wavelength selection | 80km SMF | 0~70 commercial |
Recommended Operating Conditions and Power Supply Requirements
Parameter | Symbol | Min | Typical | Max | Unit | Notes |
Operating Case Temperature | TOP | 0 | 70 | oC | commercial | |
Supply Voltage | VCC | 3.135 | 3.465 | V | ||
Main Supply Voltage | Vcc5 | 4.75 | 5.25 | V | ||
Data Rate | 10.3125 | Gb/s | ||||
Control Input Voltage High | 2 | Vcc | V | |||
Control Input Voltage Low | 0 | 0.8 | V | |||
Link Distance (SMF) | D | 80 | km | 9/125um |
General Description

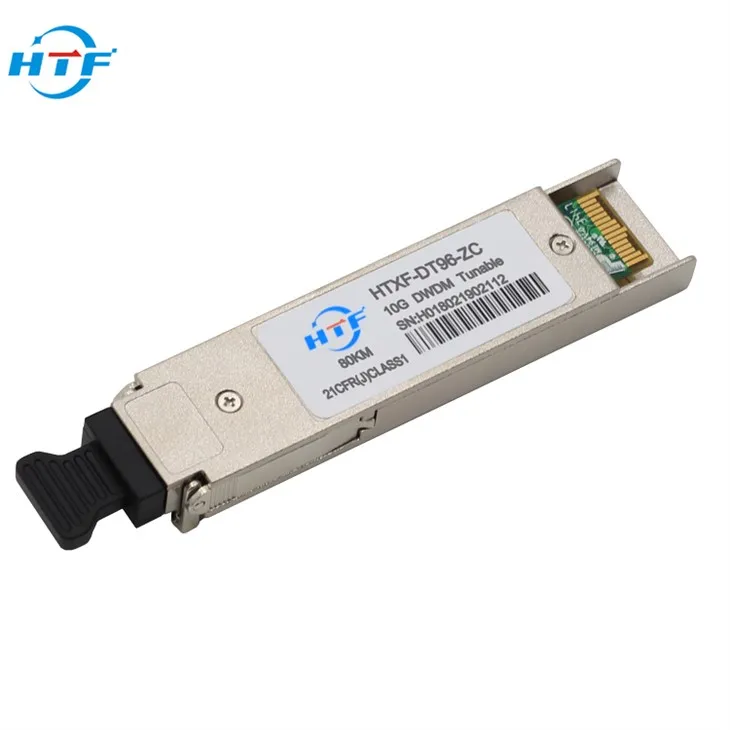

HTF’HTXF-DT96-80x tunable transceiver is an integrated fiber optic transceiver that provides a high-speed serial link at signaling rates from 9.95 Gb/s to 11.35 Gb/s. The module complies with the 10 Gigabit small form factor pluggable (XFP) multisource agreement-MSA (INF-8077i) and Tunable XFP for ITU Frequency Grid Applications（SFF-8477）.
It complies with the ITU-T G.698.1 standard with 50 GHz channel spacing for SONET/SDH, IEEE DWDM 10GBASE-ZR for 80 km reach (Ethernet), and DWDM 10GFC for 80 km reach (Fiber Channel) applications.
The transceiver integrates the receiver and transmit path on one module. On the transmit side, the 10 Gbps serial data stream is recovered, retimed, and passed to a modulator driver. The modulator driver biases and modulates a C-band-tunable integrated laser Mach-Zehnder (ILMZ), enabling data transmission over single-mode fiber through an industry-standard LC connector. On the receiver side, the 10 Gbps data stream is recovered from an APD/ trans-impedance amplifier, retimed, and passed to an output driver. This module features a hot-pluggable XFI-compliant electrical interface.
Optical Characteristics
The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.
Parameter | Symbol | Min. | Typical | Max | Unit | Notes |
Transmitter | ||||||
Optical Wavelength | λc | λc -0.05 | λc +0.05 | nm | 1 | |
Center Wavelength Spacing | 50 | GHz | ||||
Optical Spectral Width | ∆λ | 1 | nm | |||
Side Mode Suppression Ratio | SMSR | 30 | dB | |||
Average Optical Power | PAVG | -1 | 4 | dBm | 2 | |
Optical Extinction Ratio | ER | 9 | dB | |||
Transmitter and Dispersion Penalty | TDP | 3 | dB | |||
Transmitter OFF Output Power | POff | -30 | dBm | |||
Frequency stability (BOL) | -1.5 | 1.5 | GHz | |||
Frequency stability (EOL) | -2.5 | 2.5 | GHz | |||
Transmitter Eye Mask | Compliant with IEEE802.3ae | |||||
Receiver | ||||||
Center Wavelength | λC | 1270 | 1610 | nm | ||
Receiver Sensitivity (Average Power) | Sen. | -24 | dBm | 3 | ||
Input Saturation Power (overload) | Psat | -7 | dBm | |||
LOS Assert | LOSA | -37 | dB | |||
LOS De-assert | LOSD | -27 | dBm | |||
LOS Hysteresis | LOSH | 0.5 | dBm | |||
Notes:
1. λc refer to wavelength selection, and corresponds to approximately 0.4 nm
2. Class 1 Laser Safety per FDA/CDRH and IEC-825-1 regulations.
3. Measured with Light source 1528.77~1563.86nm, ER=6.0dB; BER =<10^-12 @10.3125Gbps, PRBS=2^31-1 NRZ.
Mechanical Dimensions
