1m (3ft) MTP Female to 4 LC UPC Duplex 8 Fibers OM4 (OM3) 50/125 Multimode Breakout Cable, Type B, Elite, LSZH, Magenta
MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber types in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged micro cables structure. The compact cable optimize cableway use and improve airflow. These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion low for demanding high speed networks where power budgets are critical.
Application
● Data communication network
● Optical System
● Access network Storage area networking fiber channel
● High density architectures
Features
100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available
Mechanical & Material Data
Range of Mode | Single mode or Multi mode |
Cable Type | Simplex, Duplex |
Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP etc. |
Polish or Ferrule Interface Type | PC, UPC, APC |
Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
Outer Jacket | PVC /LSZH/OFNP |
Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green |
Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
Operating Temp. | -20 ℃ to +70℃/+85℃ (armored) |
Storage Temp. | -40℃ to +85℃ |
MTP-HD to LC-HD (High Density ) fiber patch cables allow high-density connections between network equipment in telecommunication rooms. The Push/Pull tab connector can be removed using a simple pull tab, eliminateing the need for finger access to the connectors release mechanism in dense applications. This LSZH cable is designed and tested to conform to IEC-60332-1 and IEC-61034.

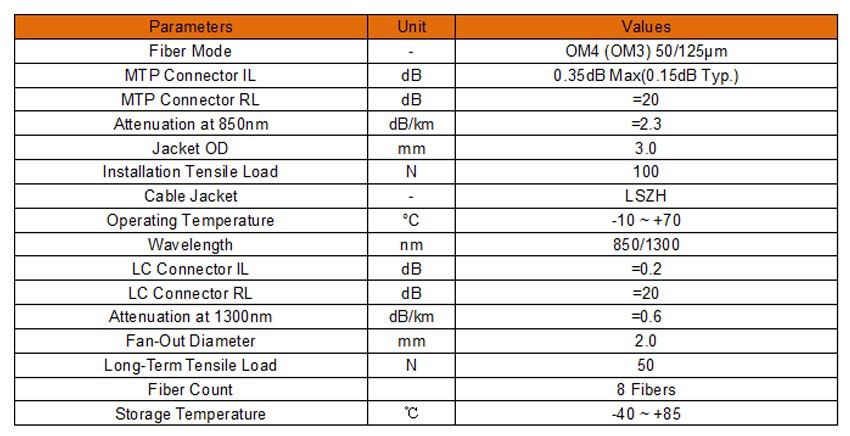

Technical data
Connector Type | Performance Level | |||||
| Standard | Elite | |||||
Connector | Mode | End face | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 | ||
APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 | ||
MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 | |
MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 | |
MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
MM | PC | ≤0.5 | ≥35 | / | / | |
