- Support single-channel 100G/200G large particle transmission
- Support for 191.3~196.1THz,50GHz/75GHz/100GHz interval wavelength tunable
- Support DCO module output power tunable
- Support ports hardware and software loop back testing
- Support DDM, OSNR monitoring, and real-time BER monitoring
- Support ALS functionality
- Support Local Fault and Remote Fault transparent transmission
- Support LLDP functionality
- Support RMON statistics
- Support time delay measurement

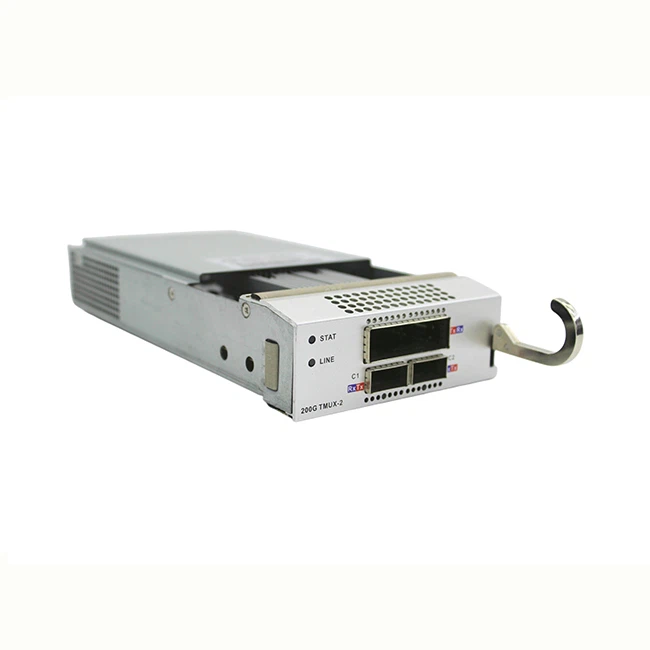

200G TMUX
|
Name |
Technical Parameters |
Unit |
|
|
Line side center wavelength |
Support 191.3~196.1THz, 50GHZ / 75GHZ / 100GHZ interval wavelength tunable |
nm |
|
|
Speed (Gbps) |
Client side 2x100G, Line side 1x200G single lamda |
Gbps |
|
|
Type of service |
Support 100GE, 100GE FlexE, 100G OTU4 and other service access; |
||
|
Port |
Client Side |
2x100G QSFP28 |
|
|
Line Side |
1xCFP2 200Gbps coherent DWDM module |
||
|
OSNR function |
DP-QPSK-OFEC-100GE-100G |
OSNR tolerance for 12.5dB |
dB |
|
DP-QPSK-OFEC-100GE-200G |
The OSNR tolerance is 14dB |
dB |
|
|
16QAM-OFEC-100GE-200G |
The OSNR tolerance is 20dB |
dB |
|
|
Size |
107 (W) X 254 (D) X 42 (H) |
mm |
|
|
Environment |
Working Temp.(℃) |
-5 ~ 45 |
℃ |
|
Storage Temp.(℃) |
-40 ~ 80 |
℃ |
|
|
Relative Humidity |
5% ~ 95%, with no condensation |
||
|
Power Consumption (W) |
≤80 |
W |
|
