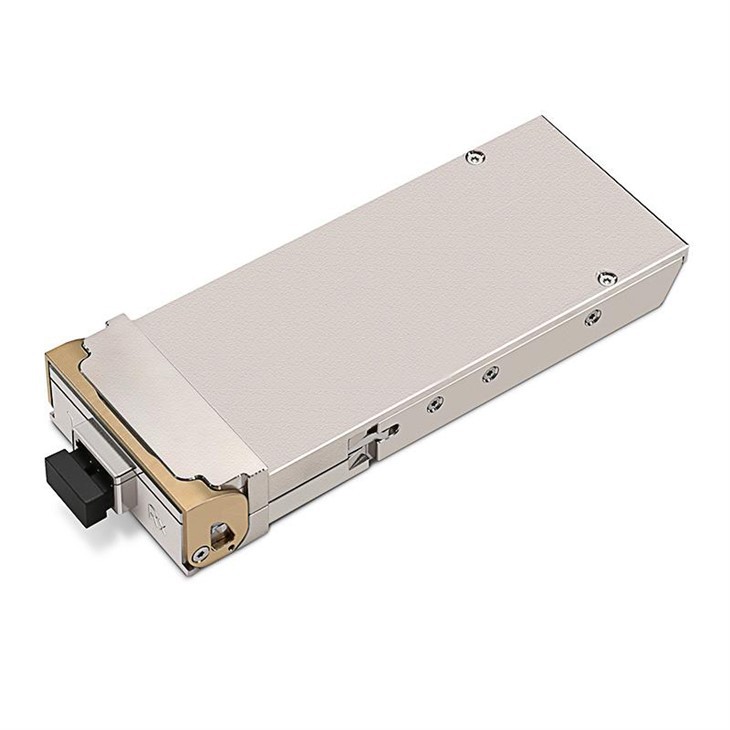

Digital Coherent Optics module, CFP2 form factor
Multi-rate IEEE Ethernet or ITU-T OTN/FlexO compliant host interface
Transmission reach up to 1000km at 400G, with extended reach at 200G (2000km) and 100G (5000km)
Optional Layer 1 encryption (AES-256)
Full C-band tunable with optional flexible grid support
Tx output power 0dBm
Case temperature range: 0°C to 70°C
Power dissipation <26W
400G CFP2-DCO Digital Coherent Optics Transceiver Application
Metro and long-haul transmission
Data center interconnect
CFP2 Digital Coherent Optics (DCO) transceiver supports multi-rate coherent transmission for data center interconnect, as well as metro and long-haul transport applications. On the host side, the module can accommodate a variety of signal types including 100GE, 200GE, 400GE, OTU4 and OTUCn (FlexO). On the line side the module supports 100G, 200G, 300G, and 400G interfaces with different modulation formats and forward error correction (FEC) codes. Multiple 100G clients can be multiplexed onto a single 200G, 300G, or 400G line side interface.
The transceiver module is compliant to the CFP MSA CFP2 Hardware Specification, with extensions specified in the OIF CFP2-DCO implementation agreement. The optical transceiver is RoHS compliant as described in Application Note AN-2038.
