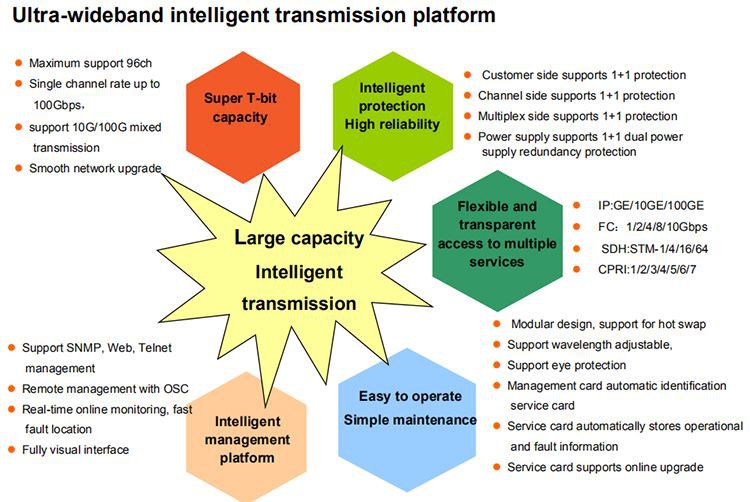

Ultra-large capacity intelligent transmission platform
Standard 1U, 19", 4 slots
Standard 2U, 19", 8 slots
Standard 5U, 19", 20 slots
Dual power supply AC/DC optional
Multiple service card hybrid insertion
Support 10G/100G hybrid transmission
Specifications
|
Item |
Description |
|
|
Transmission capacity |
96x10Gbps /96x100Gbps |
|
|
Network management unit |
EMS network management disk |
|
|
OTU |
Support 1.25G ~10Gbps, 100Gbps |
|
|
1/2/4/8 /10Gbps Fibre Channel |
||
|
CPRI;2/3/4/5/6/7 |
||
|
1G/10G Ethernet LAN or WAN PHY |
||
|
STM-4/16/64 SONET/SDH |
||
|
MUX/DEMUX |
support 8ch/16ch/40ch/48ch |
|
|
EDFA |
EDFA erbium doped fiber amplifier |
|
|
DCM |
DCM:G.652/G655 Dispersion compensation fiber module |
|
|
OLP |
OLP1 + 1 optical protection |
|
|
size |
Services card |
20.5(H)× 195(W)× 252(D) (mm) |
|
1U 4-slot chassis |
482.5 ( W ) x 350( D ) x 44.5 ( H ) mm |
|
|
2U 8-slot chassis |
482.5 ( W ) x 350( D ) x 89 ( H ) mm |
|
|
5U 20-slot chassis |
482.5 ( W ) x 350( D ) x 222.5 ( H ) mm |
|
|
Environment |
Operating Temperature |
-10℃ ~ 60℃ |
|
Storage Temperature |
-40℃ ~ 80℃ |
|
|
Relative humidity |
5% ~ 95% Non-condensing |
|
|
Power supply mode |
dual power supply, AC220V/DC-48V optional |
|
|
Power consumption |
1U ＜120W, 2U＜200W, 5U＜400W |
|
Optional card according to your project:
(1) NMS management card
(2) SFP+ Multi-Rate Quad Transponder
(3) Redundant Multi-Rate Dual Transponder
(4) 8x1GE Muxponder Module with SFP+/XFP trunk
(5) EDFA Optical Amplifiers
(6) OLP Optical Line Protector
(7) 40ch DWDM MUX/DEMUX (AAWG)
(8) 16ch DWDM MUX/DEMUX
(9) DWDM Passive Optical Add/Drop Multiplexers
