Compatible 10G SFP+ Active Optical cable Features:
Support 10GBASE-SR/10G Fiber Channel application
Compliant to SFP+ Electrical MSA SFF-8431
Compliant to SFP+ Mechanical MSA SFF-8432
Multi rate of up to 11.3Gbps
Transmission distance up to 300m
+3.3V single power supply
Low power consumption
Operating case temp Commercial: 0°C to +70 °C
RoHS compliant
Password protection for A0h and A2h

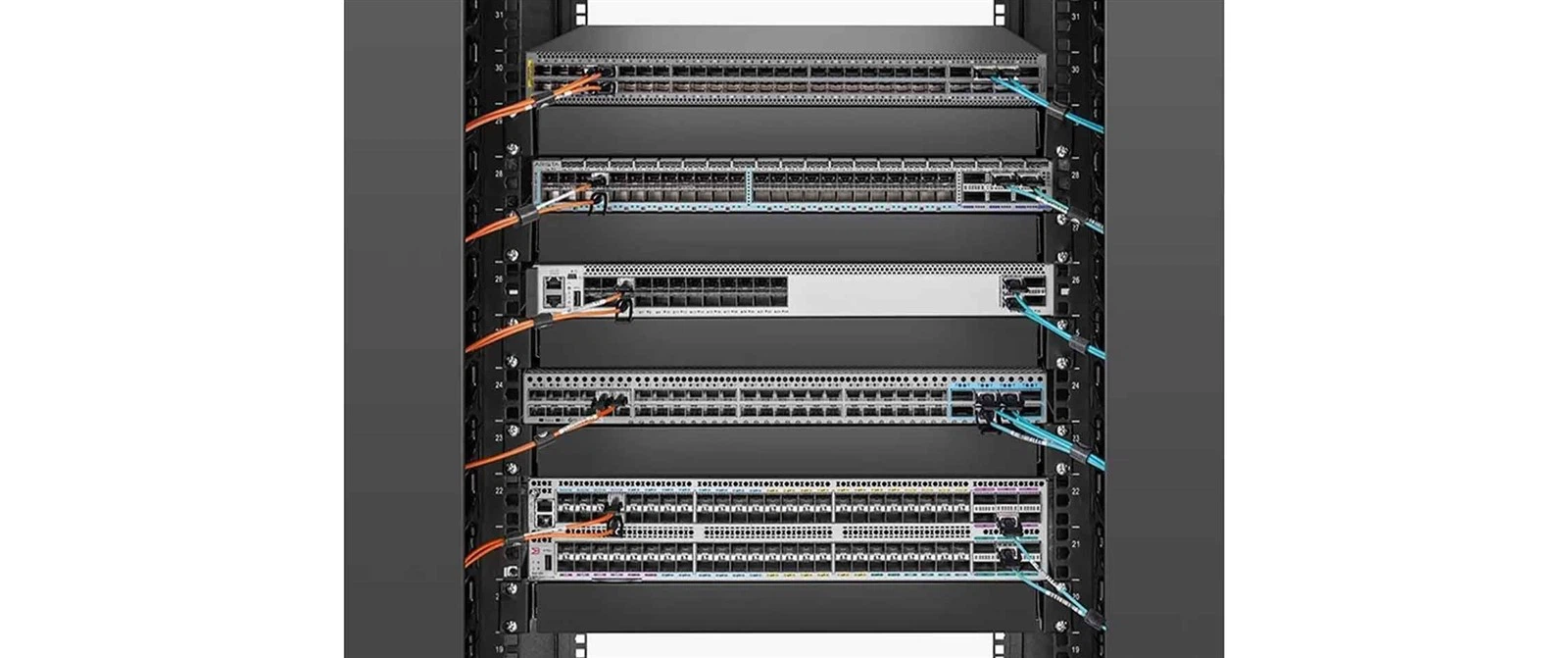

10G Connectivity for Data Center
Tested in Host Devices for Proven Interoperability
Absolute Maximum Ratings
Table1- Absolute Maximum Ratings
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
|
Supply Voltage |
Vcc3 |
-0.5 |
- |
+3.6 |
V |
|
|
Storage Temperature |
Ts |
-10 |
- |
+70 |
°C |
|
|
Operating Humidity |
RH |
+5 |
- |
+85 |
% |
1 |
|
Receiver Damage Threshold |
P Rdmg |
+3.4 |
- |
- |
dBm |
|
Note: 1 No condensation
Recommended Operating Conditions
Table 2- Recommended operating Conditions
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
|
Operating Case Temperature |
TC |
0 |
- |
+70 |
°C |
|
|
Power Supply Voltage |
Vcc |
3.14 |
3.3 |
3.47 |
V |
|
|
Power Supply Current |
Icc |
- |
- |
150 |
mA |
|
|
Power Dissipation |
Pd |
- |
- |
0.6 |
W |
|
|
Bit Rate |
BR |
|
10.3125 |
- |
Gbps |
|
|
Fiber Bend Radius |
Rb |
3 |
- |
- |
cm |
|
Electrical and Optical characteristics
Table 3- Electrical Characteristics
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |
Notes |
|
|
Transmitter |
|||||||
|
Differential Date Input Swing |
Vin,P-P |
200 |
- |
1600 |
mV |
|
|
|
Input Differential Impedance |
ZIN |
90 |
100 |
110 |
Ω |
|
|
|
Tx_Fault |
Normal Operation |
VOL |
0 |
- |
0.8 |
V |
|
|
Transmitter Fault |
VOH |
2.0 |
- |
VCC |
V |
|
|
|
Tx_Disable |
Normal Operation |
VIL |
0 |
- |
0.8 |
V |
|
|
Laser Disable |
VIH |
2.0 |
- |
VCC+0.3 |
V |
|
|
|
Receiver |
|||||||
|
Differential Data Output |
Vout |
370 |
- |
1600 |
mV |
|
|
|
Output Differential Impedance |
ZD |
90 |
100 |
110 |
Ω |
|
|
|
Rx_LOS |
Normal Operation |
VOL |
0 |
- |
0.8 |
V |
|
|
Lose Signal |
VoH |
2.0 |
- |
VCC |
V |
|
|
