MTP jumper adopts the industry-leading high-performance polishing machine, supplemented by MT series casing design. There is a spring installed at the end of the plug-in core to exert an axial pressure on the insert until the outer frame of the connector is locked with the adapter. There is a convex key on the upper side of the plug-in core, which is used to limit the relative position between connectors during connection, so as to determine the correct docking sequence of optical fiber and provide excellent performance. Moreover, it is easy to install and save time and cost. They can optimize network performance and maximize service life. MTP multi-core patch cords meet the performance and reliability required by today's demanding high-speed broadband and data networks. They are designed to meet growing demand and future technological developments.
Facing the increasing demand of high-speed and large capacity optical communication system, MTP / MPO optical fiber connector and optical fiber jumper are the ideal solutions to meet the high-density wiring requirements of data center, because of its advantages of large number of cores, small size and high transmission rate.
MPO optical fiber jumper is composed of MPO connector and optical fiber cable. According to IEC 61754-7, there are several factors to distinguish MPO connector types: number of cores (array number of optical fiber array), male female head (male female), polarity (key), polishing type (PC or APC).
Patch Cord MTP 12 Fibers OM4 MMF TypeB LSZH 3ft
Polarity classification:
Type A (straight through type): the arrangement of fiber cores at both ends of the jumper is the same, that is, one end corresponds to one at the other end, and 12 at one end corresponds to 12 at the other end. The key orientation of both ends is opposite, and key up corresponds to key down.
Type B (interleaving type): the arrangement of the cores at both ends of the jumper is opposite, that is, one end corresponds to 12 at the other end, and 12 at one end corresponds to 1 at the other end. The key orientation of both ends is the same, that is, key up corresponds to key up, and key down corresponds to key down.

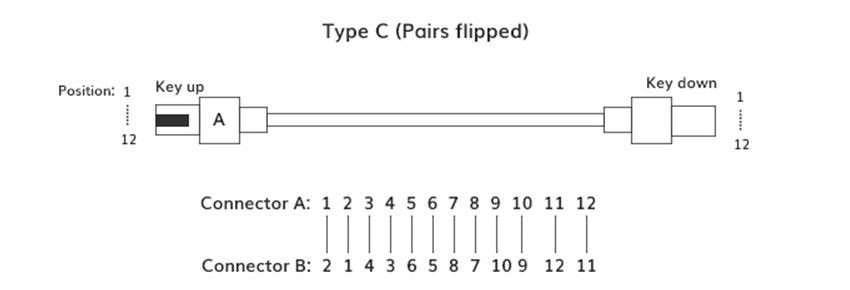

Type C (paired interleaving type): jumper is a pair of adjacent core positions crossing, that is, core 1 at one end corresponds to 2 at the other end, and core 12 at one end is 11 at the other end. The key direction of both ends is also opposite, and key up corresponds to key down.
Different MTP fiber jumpers have different application scenarios
1. MTP fiber jumper is used to realize the interconnection of 100g qsfp28 optical modules, so as to improve the performance of fiber broadband.
2. Use MTP branch optical fiber jumper to realize data transmission from 40g to 4 × 10g, so as to achieve different network connection effects.
