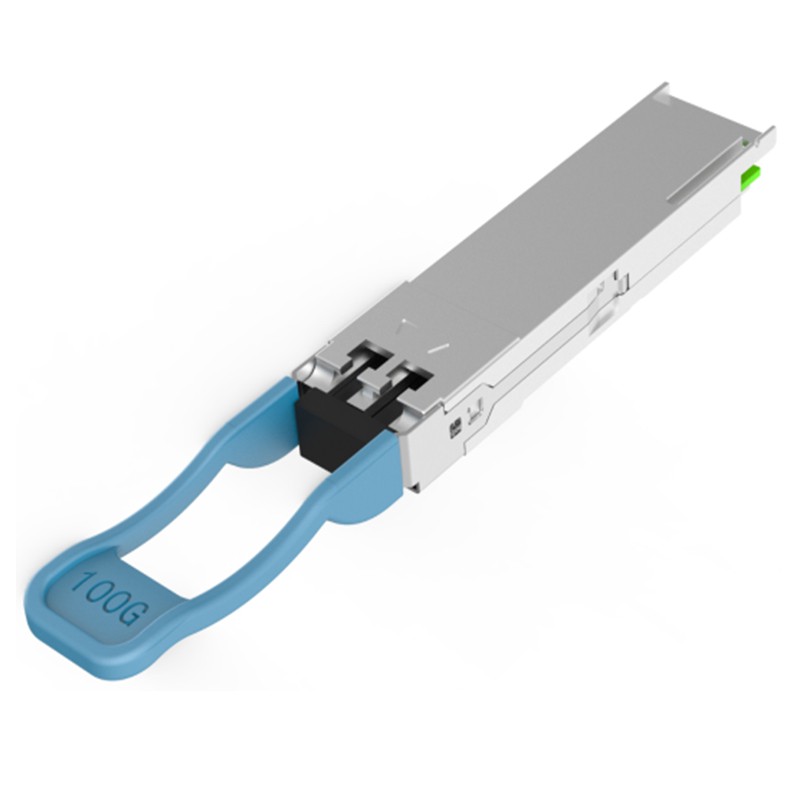

100Gb/s QSFP28 LR1 10km Transceiver
Compliant with 100GBASE-LR1
Lane bit rate 106.25Gb/s with PAM4
EML laser and PIN receiver
4x25.78Gb/s with NRZ electrical interface (CAUI-4)
Up to 10km transmission on SMF
Support Digital Monitoring interface
RoHS-10 compliant and lead-free
QSFP28 MSA package with LC duplex connector
Single +3.3V power supply
Maximum power consumption 4.5W
All-metal housing for superior EMI performance
Compliant to 802.3cu, SFF-8636&SFF-8679 stand
Case operating temperature
Commercial: 0 ~ +70oC
Extended: -10 ~ +80oC
Industrial: -40 ~ +85oC
Applications
Data Center
100GBASE-LR1
Ethernet switches and router applications
The wavelength can choose by customer.
Note: 1271nm, x=6; 1291nm, x=7; 1311nm, x=3; 1331nm, x=8.
CWDM-QSFP-100G-27
100G-LR CWDM Single Lambda PAM4 QSFP28 Module (Tx: 1264.5-1277.5nm, 106.25 Gbps, 10km, SMF with FEC, 6.3 dB, Temp 0-70C, LC Connector)
CWDM-QSFP-100G-29
100G-LR CWDM Single Lambda PAM4 QSFP28 Module (Tx: 1284.5-1297.5nm, 106.25 Gbps, 10km, SMF with FEC, 6.3 dB, Temp 0-70C, LC Connector)
CWDM-QSFP-100G-31
100G-LR CWDM Single Lambda PAM4 QSFP28 Module (Tx: 1304.5-1317.5nm, 106.25 Gbps, 10km, SMF with FEC, 6.3 dB, Temp 0-70C, LC Connector)
CWDM-QSFP-100G-33
100G-LR CWDM Single Lambda PAM4 QSFP28 Module (Tx: 1324.5-1337.5nm, 106.25 Gbps, 10km, SMF with FEC, 6.3 dB, Temp 0-70C
