Features
● Hot-pluggable QSFP28 form factor
● Supports 103.1Gb/s aggregate bit rate
● 4x25G electrical interface
● Compliant to IEEE 802.3bm 100GBASE-SR4
● MTP/MPO optical connector
● Up to 100m OM4 MMF transmission
● Digital diagnostic SFF-8636 compliant
● RoHS-6 compliant and lead-free
● Compliant with QSFP28 MSA
● Single +3.3V power supply
● Maximum power consumption 2.0W
● Case operating temperature
● Commercial: 0 ~ +70oC
Applications
Data Center
Fiber channel
Ethernet switches and router applications
Ordering Information
| Part Number | Data Rate (Gb/s) | Wavelength (nm) | transmission Distance(m) | Temperature (oC) (Operating Case) |

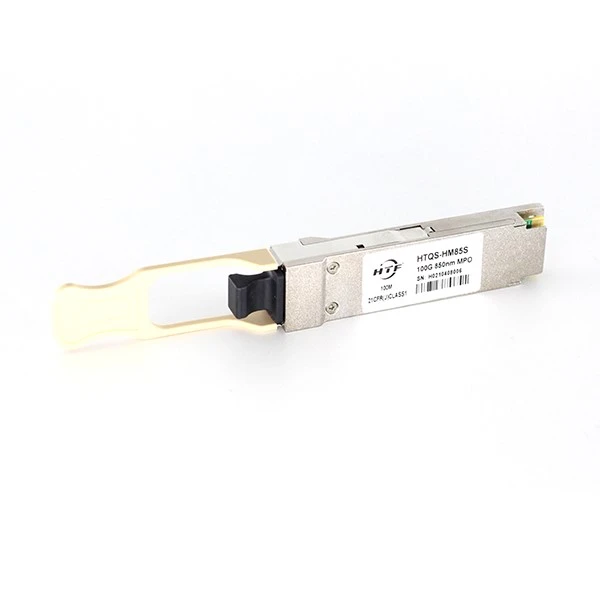

| HTQS-HM85S | 100 | 850 | 100m MMF | 0~70 commercial |
Optical Characteristics
| Parameter | Symbol | Min. | Typical | Max | Unit | Notes |
| transmitter | ||||||
| Center Wavelength | λC | 840 | 850 | 860 | nm | |
| Optical Spectral Width | ∆λ | 0.6 | nm | |||
| Average Launch Power each lane | PAVG | -8.4 | 2.4 | dBm | ||
| Optical Extinction Ratio | ER | 2 | dB | |||
| transmitter and Dispersion Penalty | tdP | 4.3 | dB | |||
| transmitter OFF Output Power | Poff | -30 | dBm | |||
| transmitter Eye Mask | Compliant with IEEE802.3ae | |||||
| Receiver | ||||||
| Center Wavelength | λC | 840 | 860 | nm | ||
| Rx Sensitivity per lane | Sen. | -10.3 | dBm | 1 | ||
| Input Saturation Power (overload) | Psat | 2.4 | dBm | |||
| LOS Assert | LOSA | -26 | dBm | |||
| LOS De-assert | LOSD | -12 | dBm | |||
| LOS Hysteresis | LOSH | 0.5 | dB | |||
