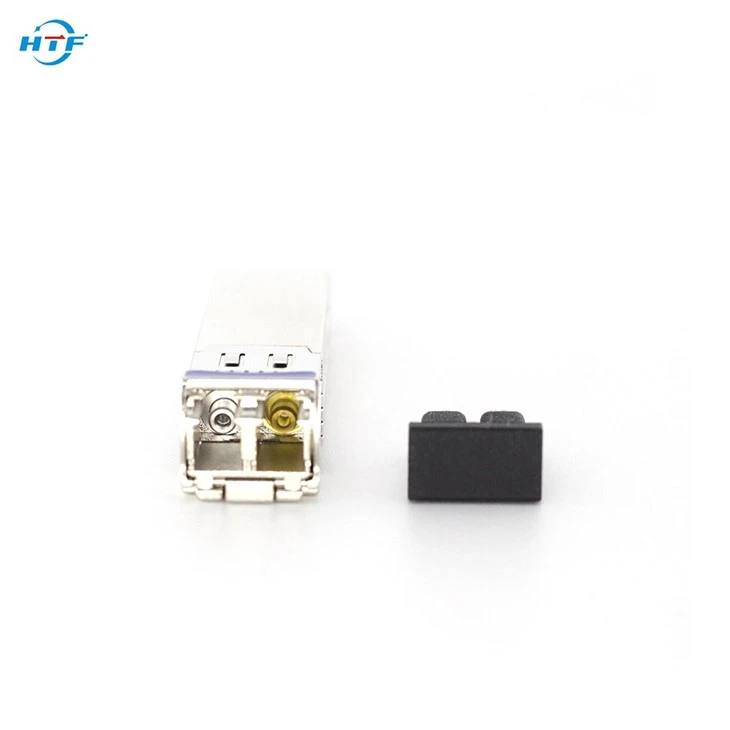

10Gb/s SFP+ 1310nm 10km Optical Transceiver Module HTSX-S3196Lx
Features
Up to 11.3Gb/s data links
1310nm DFB transmitter and PIN receiver
Up to 10km on 9/125µm SMF
Hot-pluggable SFP+ footprint
Duplex LC/UPC type pluggable optical interface
Metal enclosure, for lower EMI
RoHS compliant and lead-free
Support Digital Diagnostic Monitoring interface
Single +3.3V power supply
Maximum power consumption 1.2W
Compliant with SFF+MSA and SFF8472
Case operating temperature
Commercial: 0 ~ +70oC
Extended: -10 ~ +80oC
Industrial: -40 ~ +85oC
Part Number Ordering Information
|
Part Number |
Data Rate (Gb/s) |
Wavelength (nm) |
Transmission Distance(km) |
Temperature (oC) (Operating Case) |
|
HTSX-S3196LC |
10.3125 |
1310 |
10km SMF |
0~70 commercial |
|
HTSX-S3196LE |
10.3125 |
1310 |
10km SMF |
-10~80 Extended |
|
HTSX-S3196LI |
10.3125 |
1310 |
10km SMF |
-40~85 Industrial |
1. Absolute Maximum Ratings
It has to be noted that the operation in excess of any individual absolute maximum ratings might cause permanent damage to this module.
|
Parameter |
Symbol |
Min |
Max |
Unit |
Notes |
|
Storage Temperature |
TS |
-40 |
85 |
oC |
|
|
Power Supply Voltage |
VCC |
-0.5 |
3.6 |
V |
|
|
Relative Humidity (non-condensation) |
RH |
5 |
95 |
% |
|
|
Damage Threshold |
THd |
5 |
|
dBm |
|
2. Recommended Operating Conditions and Power Supply Requirements
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Notes |
|
Operating Case Temperature |
TOP |
0 |
|
70 |
oC |
commercial |
|
-40 |
|
85 |
oC |
Industrial |
||
|
Power Supply Voltage |
VCC |
3.135 |
3.3 |
3.465 |
V |
|
|
Data Rate |
|
|
10.3125 |
|
Gb/s |
|
|
Control Input Voltage High |
|
2 |
|
Vcc |
V |
|
|
Control Input Voltage Low |
|
0 |
|
0.8 |
V |
|
|
Link Distance (SMF) |
D |
|
|
10 |
km |
9/125um |
