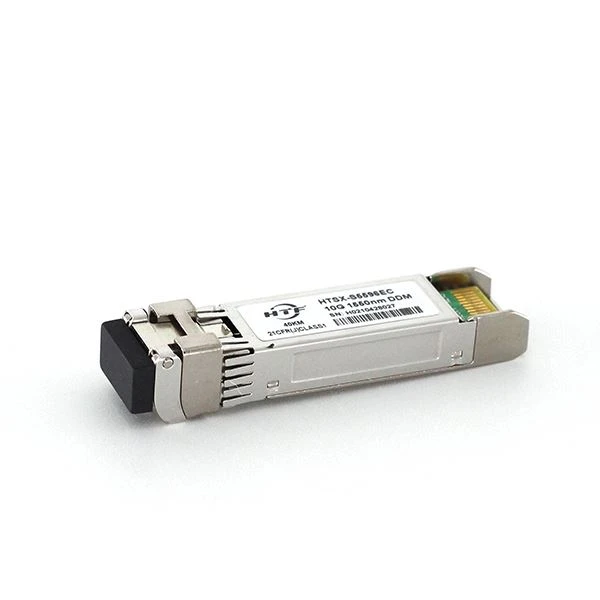

10G SFP 1550nm 40km Optical Transceiver

10G SFP 1550nm 40km Optical Transceiver
Details:
HTF's SFP+ transceiver is designed for use in 10-Gigabit Ethernet links up to 40km over single mode fiber. The module consists of 1550 EML Laser, PIN and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
Send Inquiry
Description
Send Inquiry

Features

●Up to 11.3Gb/s data links

●1550nm EML transmitter and PIN receiver

●Up to 40km on 9/125µm SMF

●Hot-pluggable SFP+ footprint

●Duplex LC/UPC type pluggable optical interface

●Metal enclosure, for lower EMI

●RoHS compliant and lead-free

●Support Digital Diagnostic Monitoring interface

●Single +3.3V power supply

●Maximum power consumption 1.5W

●Compliant with SFF+MSA and SFF8472

●Case operating temperature

  Commercial: 0 ~ +70oC

  Extended: -10 ~ +80oC

  Industrial: -40 ~ +85oC


Part Number Ordering Information

                Part Number                Data Rate (Gb/s)                Wavelength (nm)                transmission Distance(km)                Temperature (oC) (Operating Case)
                HTSX-S5596EC                10.3125                1550                40km SMF                0~70 commercial
                HTSX-S5596EE                10.3125                1550                40km SMF                -10~80 Extended
                HTSX-S5596EI                10.3125                1550                40km SMF                -40~85 Industrial
