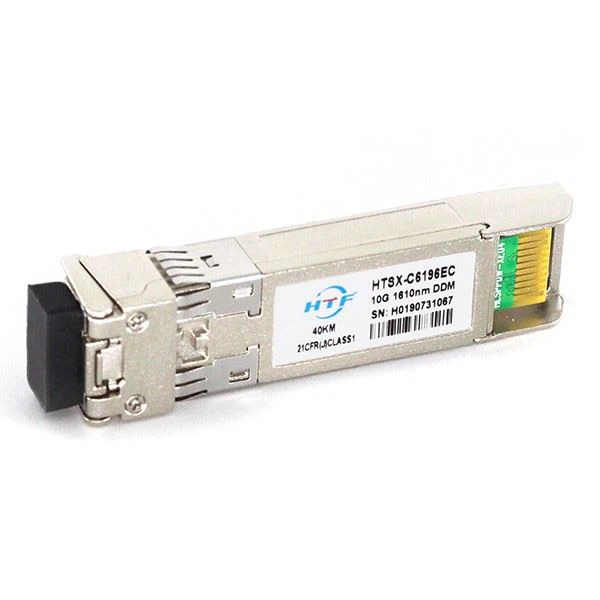

Features
Up to 11.3Gb/s data links
CWDM EML transmitter and PIN receiver
Up to 40km on 9/125µm SMF
Hot-pluggable SFP+ footprint
Duplex LC/UPC type pluggable optical interface
Metal enclosure, for lower EMI
RoHS compliant and lead-free
Support Digital Diagnostic Monitoring interface
Single +3.3V power supply
Maximum power consumption 1.5W
Compliant with SFF+MSA and SFF8472
Case operating temperature
Commercial: 0 ~ +70oC
Extended: -10 ~ +80oC
Industrial: -40 ~ +85oC
Applications
10GBASE-ER/EW & 10G Ethernet
SDH STM64
Other Optical Links
Part Number Ordering Information
Part Number | Data Rate (Gb/s) | Wavelength (nm) | Transmission Distance(km) | Temperature (oC) (Operating Case) |
HTSX-Cxx96EC | 10.3125 | Refer to wavelength selection | 40km SMF | 0~70 commercial |
HTSX-Cxx96EE | 10.3125 | Refer to wavelength selection | 40km SMF | -10~80 extended |
HTSX-Cxx96EI | 10.3125 | Refer to wavelength selection | 40km SMF | -40~85 Industrial |
Wavelength Selection: CWDM λ Wavelength Guide Pin Descriptions
Wavelength | xx | Clasp Color Code | Wavelength | xx | Clasp Color Code |
1470 nm | 47 | Gray | 1550 nm | 55 | Yellow |
1490 nm | 49 | Purple | 1570 nm | 57 | Orange |
1510 nm | 51 | Blue | 1590 nm | 59 | Red |
1530 nm | 53 | Green | 1610 nm | 61 | Brown |
Optical Characteristics
Parameter | Symbol | Min. | Typical | Max | Unit | Notes |
Transmitter | ||||||
Center Wavelength | λ | λ -6.5 | λ +6.5 | nm | 1 | |
Optical Spectral Width | ∆λ | 1 | nm | |||
Side Mode Suppression Ratio | SMSR | 30 | dB | |||
Average Optical Power | PAVG | -1 | 3 | dBm | 2 | |
Optical Extinction Ratio | ER | 6 | dB | |||
Transmitter and Dispersion Penalty | TDP | 3.0 | dB | |||
Relative Intensity Noise | RIN | -128 | dB/Hz | |||
Transmitter Eye Mask | Compliant with IEEE802.3ae | |||||
Receiver | ||||||
Center Wavelength | λ | 1270 | 1610 | nm | ||
Receiver Sensitivity (Average Power) | Sen. | -15.8 | dBm | 3 | ||
Input Saturation Power (overload) | Psat | 0.5 | dBm | |||
LOS Assert | LOSA | -30 | dBm | |||
LOS De-assert | LOSD | -17 | dBm | |||
LOS Hysteresis | LOSH | 0.5 | dB |
Compatible brands
Cisco | Alcatel Lucent | Netgear | Qlogic(Cavium) | Ruijie |
Mellanox | Allied Telesis | SMC | Cheisio | Maipu |
Huawei | SolareFlare | Foundry | Intel | Feixun |
Juniper | Winyao | Force 10(Dell) | Marconi | Broadcom |
Dell＆EMC | ZTE | Linksys | Blade | TP-Link |
Arista | D-Link | McAfee | Hirschmann | Extreme |
