10Gb/s Tunable DWDM 80km SFP+ Optical Transceiver Module
HTSX-DT96-80
Features
● Monolithically integrated full C-band tunable transmitter and APD receiver
● 50 GHz ITU channel spacing with integrated wavelength locker
● Hot-pluggable SFP+ footprint
● Compliant with SFP+ MSA with LC connector
Absolute Maximum Ratings
Parameter | Symbol | Min | Max | Unit | Notes |
Storage Temperature | TS | -40 | 85 | oC | |
Power Supply Voltage | VCC | -0.5 | 3.6 | V | |
Relative Humidity (non-condensation) | RH | 5 | 95 | % | |
Damage Threshold | THd | 0 | dBm |
Electrical Characteristics
The following electrical characteristics are defined over the Recommended Operating Environment unless otherwise specified.
Parameter | Symbol | Min. | Typ. | Max | Unit | Notes |
Power Consumption | p | 1.5 | W | |||
Supply Current | Icc | 450 | mA | |||
Transmitter | ||||||
Single-ended Input Voltage Tolerance | Vcc | -0.3 | 4.0 | V | ||
AC Common Mode Input Voltage Tolerance (RMS) | 15 | mV | ||||
Differential Input Voltage Swing | Vin,pp | 240 | 910 | mVpp | ||
Differential Input Impedance | Zin | 90 | 100 | 110 | Ohm | 1 |
Transmit Disable Assert Time | 10 | us | ||||
Transmit Disable Voltage | Vdis | Vcc-1.3 | Vcc | V | ||
Transmit Enable Voltage | Ven | Vee | Vee +0.8 | V | 2 | |
Receiver | ||||||
Differential Output Voltage Swing | Vout,pp | 350 | 800 | mVpp | ||
Differential Output Impedance | Zout | 90 | 100 | 110 | Ohm | 3 |
Data output rise/fall time | Tr/Tf | 30 | ps | 4 |
1. What is the photoelectric module?
The optoelectronic module is also known as the electrical interface module, whose interface type is RJ45. The optoelectronic module is a kind of module that supports hot plug. The package types are SFP, SFP+, GBIC, etc. According to the different speed, the optoelectronic module is divided into 100 megabit optoelectronic module, gigabit optoelectronic module, 10 gigabit optoelectronic module and adaptive optoelectronic module, among which the gigabit optoelectronic module and 10 gigabit optoelectronic module are most widely used.
2. The usage scheme of gigabit and ten thousand megabit optoelectronic module
The most common use of gigabit modules is between two servers, where a network distribution frame is required for cross connections.
In data center wiring, the 10 gigabit optoelectronic module is often used between the switch and the server to realize the 10 gigabit transmission network.

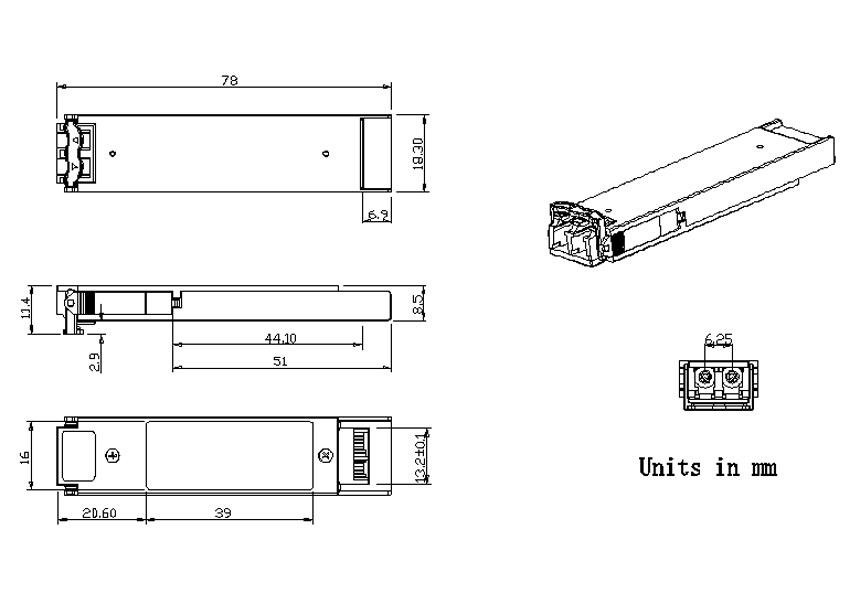

Mechanical Dimensions
FAQ
1、Question: Is it possi le to order 400 to 500 of these??
Answer: Of course! Please contact us at "sales2@HTF.com", we will offer you a reduced price for this bulk order. Look forward to cooperate with you.
2、Question: Is it possible to send to Brazil?
Answer: Yes, of course.Our partners are all over the world.
