Features
●Supports 9.95Gb/s to 11.3Gb/s bit rates
●1550nm EML transmitter and APD receiver
●Up to 80km on 9/125µm SMF
●Hot-pluggable XFP footprint
●Duplex LC/UPC type pluggable optical interface
●Metal enclosure, for lower EMI
●RoHS compliant and lead-free
●Support Digital Diagnostic Monitoring interface
●Single +3.3V power supply
●Maximum power consumption 3.5W
●No Reference Clock required
●Case operating temperature
Commercial: 0 ~ +70oC
Extended: -10 ~ +80oC
Industrial: -40 ~ +85oC
Specification
Parameter | Symbol | Min. | Typical | Max | Unit | Notes |
Transmitter | ||||||
Center Wavelength | λC | 1530 | 1550 | 1570 | nm | 1 |
Optical Spectral Width | ∆λ | 1 | nm | |||
Side mode Suppression ratio | SMSR | 30 | dB | |||
Average Optical Power | PAVG | 0 | 5 | dBm | ||
Optical Extinction Ratio | ER | 9 | dB | |||
Transmitter and Dispersion Penalty | TDP | 3.0 | dB | |||
Average Launch power of OFF transmitter | POFF | -30 | dBm | |||
Transmitter Eye Mask | Compliant with IEEE802.3ae | |||||
Receiver | ||||||
Center Wavelength | λC | 1270 | 1610 | nm | ||
Receiver Sensitivity (Average Power) | Sen. | -24 | dBm | 2 | ||
Input Saturation Power (overload) | Psat | -6 | dBm | |||
LOS Assert | LOSA | -37 | dBm | |||
LOS De-assert | LOSD | -27 | dBm | |||
Receiver Reflectance | Rrx | -27 | dBm | |||
LOS Hysteresis | LOSH | 0.5 | dB |
Part Number Ordering Information
Part Number | Data Rate (Gb/s) | Wavelength (nm) | Transmission Distance(km) | Temperature (oC) (Operating Case) |

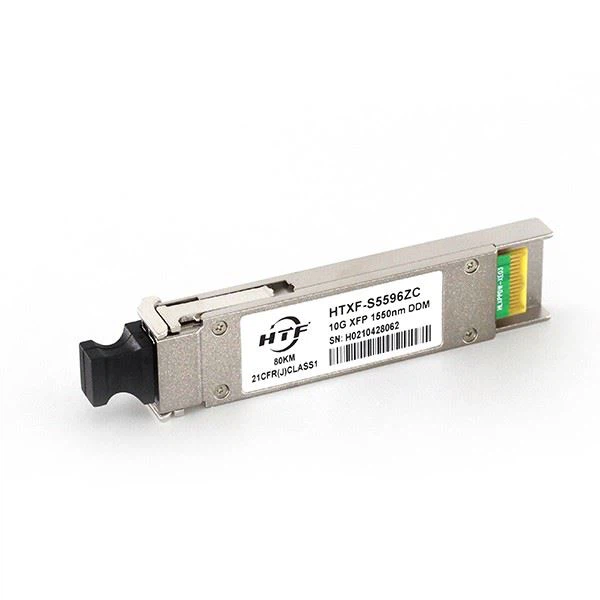

HTXF-S5596ZC | 10.3125 | 1550 | 80km SMF | 0~70 commercial |
HTXF-S5596ZE | 10.3125 | 1550 | 80km SMF | -10~80 Extended |
HTXF-S5596ZI | 10.3125 | 1550 | 80km SMF | -40~85 Industrial |
