1m (3ft) MTP Female to 6 LC UPC Duplex 12 Fibers OM4 50/125 Multimode HD BIF Breakout Cable, Type A, Elite, LSZH, Magenta
MTP-HD to LC-HD (High Density ) fiber patch cables allow high-density connections between network equipment in telecommunication rooms. The Push/Pull tab connector can be removed using a simple pull tab, eliminating the need for finger access to the connectors release mechanism in dense applications. This LSZH cable is designed and tested to conform to IEC-60332-1 and IEC-61034.
The high density cables designed with flexible “push-pull tab” Uniboot connector, bend insensitive fiber and ultra-low insertion loss, for 10GBase, 40GBase and 100GBase network connection in data center.
MPO / MTP branch jumper refers to that after the MPO / MTP connector and optical fiber cable are processed, one end is MPO / MTP connector, the other end can be LC / SC / FC and other connectors (LC is the most widely used),
The common ones are MPO / MTP (8-core) to 4xlc branch fiber jumper, MPO / MTP (12 core) to 6xlc branch fiber jumper, and MPO / MTP (24 core) to 12xlc branch fiber jumper. Through the cross type pre connected MPO / MTP technology, one end is connected with 40g / 100g, the other end is connected with 10g, and a 40g / 100g is divided into several 10g, realizing the ideal high-speed port (MTP / MPO) to low-speed port (LC / SC / FC) Transfer.
MPO / MTP-LC fiber hop
Patch Cord Fiber jumper MTP-24 OM4 Breakout Cable Specifications

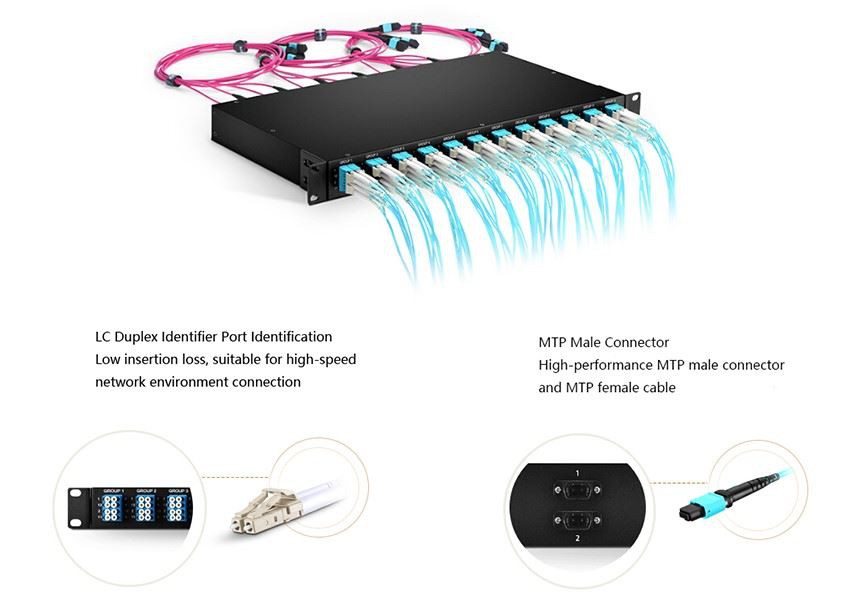

MTP-LC / SC Transfer module Transmission Performance
Multimode | MTP loss（dB） | LC/SC loss（dB） | ||||
LC/SC loss （dB） | Change of insertion loss after 500 times of plugging | Change of insertion loss after 40 cycles of high and low temperature | Insertion loss value | Change of insertion loss after 500 times of plugging | Change of insertion loss after 40 cycles of high and low temperature | |
High loss | ≤ 0.75 | ≤ 0.2 | ≤ 0.2 | ≤ 0.15 | ≤ 0.2 | ≤ 0.2 |
Medium loss | ≤ 0.55 | ≤ 0.2 | ≤ 0.2 | ≤ 0.10 | ≤ 0.2 | ≤ 0.2 |
Low loss | ≤ 0.35 | ≤ 0.2 | ≤ 0.2 | ≤ 0.05 | ≤ 0.2 | ≤ 0.2 |
Single mode | LC/SC loss（dB） | MTP loss（dB） | ||||
Insertion loss value | Changeof insertion loss after 500 times of plugging | Change of insertion loss after 40 cycles of high and low temperature | Insertionloss value | Change of insertion loss after 500 times of plugging | Change of insertion loss after 40 cycles of high and low temperature | |
High loss | ≤ 0.75 | ≤ 0.2 | ≤ 0.2 | ≤ 0.30 | ≤ 0.2 | ≤ 0.2 |
Medium loss | ≤ 0.55 | ≤ 0.2 | ≤ 0.2 | ≤ 0.15 | ≤ 0.2 | ≤ 0.2 |
Low loss | ≤ 0.35 | ≤ 0.2 | ≤ 0.2 | ≤ 0.25 | ≤ 0.2 | ≤ 0.2 |
12 core micro core cable structure
One end of MTP branch optical fiber jumper is MTP connector, and the other end is LC, FC, SC, St, or MTRJ connector, which can meet the requirements of various optical fiber wiring
1. MTP cable diameter is 3.0 mm by default.
2. The diameter of branch cable is 0.9mm and 2.0mm
