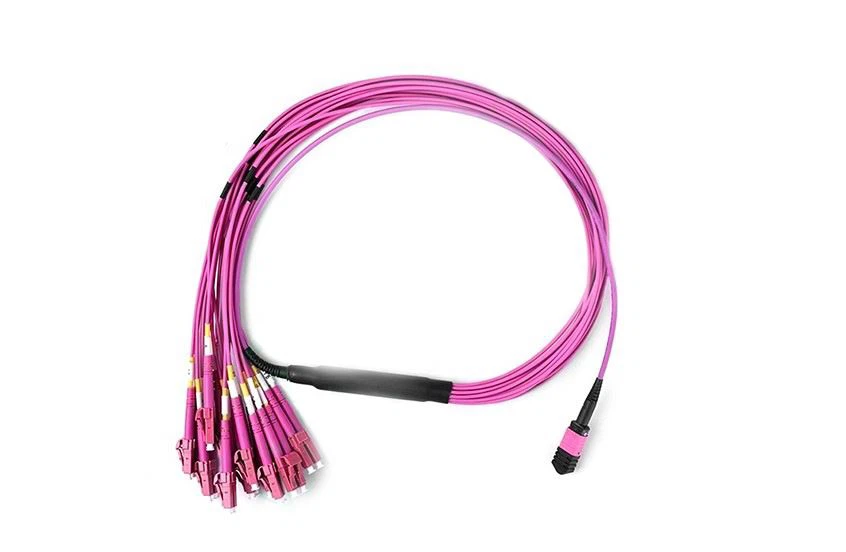

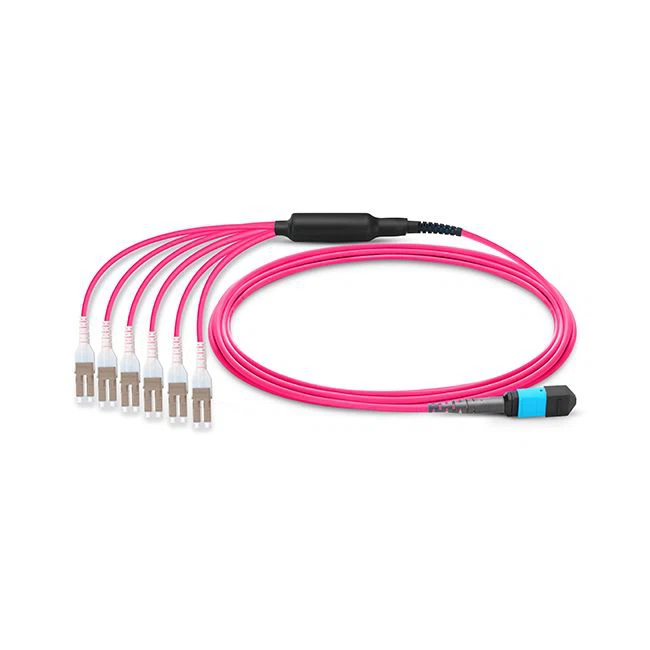

Patch Cord Magenta MTP LC Duplex 8 Fibers MMF OFNP

US Conec MTP® connector, Senko MPO Plus premium connector

Corning® Clearcurve® multimode fiber, SMF-28® Ultra Optical Fiber

OS2, OM3, OM4 fiber grades (OM1 and OM2 available)

0.35dB Elite low loss MTP/MPO connector as well standard versions of 0.6/0.75dB

Factory terminated and tested

Allow easy migration from 10GbE to 40GbE or 100GbE

Pulling eyes are provided as an option to protect the fiber ends during installation

Features

Low insertion loss and High Return Loss

Good durability

Good exchangeability

High temperature stability compliant with standards.

Application:

Optical Fiber Communication Systems

Optical Access Network

Fiber optic data transmission

Optical Fiber CATV

Local Area Network (LAN)

Test Equipment

Product Details:
Connector：MPO/MTP. SC，FC，ST，LC，MTRJ, etc
Polishing type: UPC，APC
Fiber core：Single mode & Multimode（G652D，G657A）
Fiber cable：Simplex, Duplex, Multi-core，Ribbon，Distribution, Armoured, etc
Cable OD：0.9mm，2.0mm，3.0mm，etc
Cable Material：PVC-OFNR，LSZH, etc
Patch cord Length：Customized Length 1m，2m，etc.

Jumpers of different colors

Specifications

Type	Fiber Core	Cable Type	Cable OD	Cable Material	Patch cord Length
MPO Patch cord	G652D G657A1 50/125 62.5/125 OM3 OM4	simplex Duplex Armoured Ribbon Breakout Drop cable	0.9mm 2.0mm 3.0mm	PVC or LSZH	1.5m, 3m, 5m, 10m or customized
Color	Customized

Optical Performance Data

Item	Single mode			Multimode
	PC	UPC	APC	62.5/125	50/125 OM1/2	50/125 OM3/4/5
Insert Loss	0.2dB Max. (0.15dB Elite)			0.2dB Max. (0.15dB Elite)
Return Loss	≥50 dB	≥55 dB	≥60 dB	≥35 dB
Insert. Loss/MTP or MPO	0.7dB Max. (0.35 dB Elite.)			0.5dB Max. (0.35dB Elite.)
Return Loss s/MTP or MPO	≥50dB	≥55 dB	≥60 dB	≥20dB
Pull strength	≥68N	≥68N	≥68N	≥68N
