Features

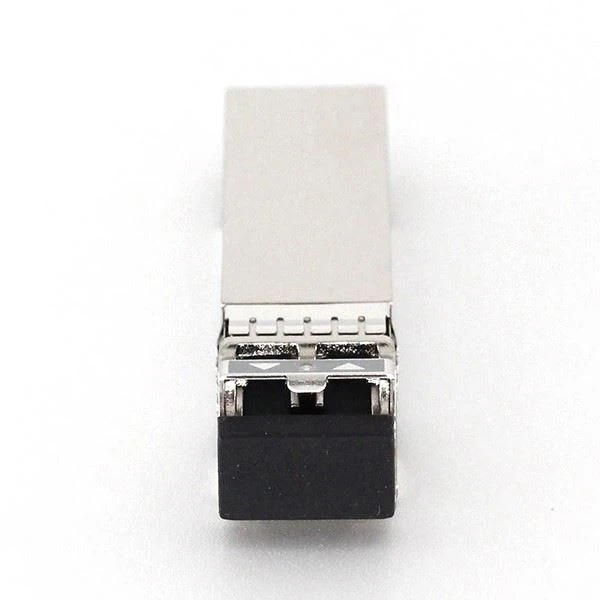

10G SFP+ CWDM 10km LR
Up to 11.3Gb/s data links
CWDM DFB transmitter and PIN receiver
Up to 10km on 9/125µm SMF
Hot-pluggable SFP+ footprint
Duplex LC/UPC type pluggable optical interface
Metal enclosure, for lower EMI
RoHS compliant and lead-free
Support Digital Diagnostic Monitoring interface
Single +3.3V power supply
Maximum power consumption 1.5W
Compliant with SFF+MSA and SFF8472
Case operating temperature
Commercial: 0 ~+70oC
Extended: -10 ~ +80oC
Industrial: -40 ~ +85oC
Optical Characteristics
10G SFP+ CWDM 10km LR
Parameter | Symbol | Min. | Typical | Max | Unit | Notes |
Transmitter | ||||||
Center Wavelength | λ | λ -6.5 | λ +6.5 | nm | 1 | |
Optical Spectral Width | ∆λ | 1 | nm | |||
Side Mode Suppression Ratio | SMSR | 30 | dB | |||
Average Optical Power | PAVG | -6 | -0.5 | dBm | 2 | |
Optical Extinction Ratio | ER | 3.5 | dB | |||
Transmitter and Dispersion Penalty | TDP | 3.2 | dB | |||
Relative Intensity Noise | RIN | -128 | dB/Hz | |||
Transmitter Eye Mask | Compliant with IEEE802.3ae | |||||
Receiver | ||||||
Center Wavelength | λ | 1270 | 1610 | nm | ||
Receiver Sensitivity (Average Power) | Sen. | -14.4 | dBm | 3 | ||
Input Saturation Power (overload) | Psat | 0.5 | dBm | |||
LOS Assert | LOSA | -30 | dBm | |||
LOS De-assert | LOSD | -17 | dBm | |||
LOS Hysteresis | LOSH | 0.5 | dB |
10G SFP+ CWDM 10km LR compatible with huawei, cisco, finisar, juniper, Do you need customized SFP optical module? HTF team will assist you. It will compatible with cisco, juniper, huawei, finisar etc brand switch.
