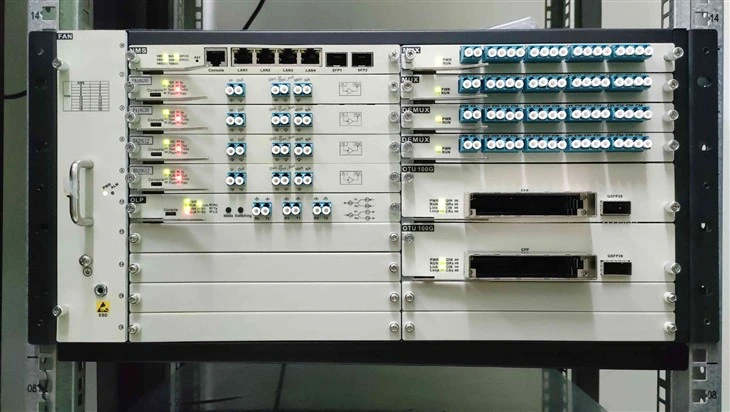

The HT6000-OD/OM16 from HTF is a combined passive Sixteen-Channel 100GHz DWDM multiplexer or de-multiplexer (MUX or DEMUX), It combines standard 100GHZ DWDM ITU grid channels 21 through 60, and applies to 1U chassis ,2U chassis and 5U chassis,occupying one service slots.
Function
16 channel DWDM optical signal multiplexed into one fiber
16 channel optical signal de-multiplexer to single-wavelength signals
Highlight
Support 4 CH / 8 CH / 16 CH
Plug and play: requires no configuration
Green product: completely passive, needs no power and no cooling
Low insertion loss
4CH maximum insertion loss ≤1.8dB
8 CH maximum insertion loss ≤3dB
16CH maximum insertion loss ≤4.5dB
High stability
Insertion loss is stable, independent of fiber parameters
Good characteristics,few affected by temperature
High channel isolation
Adjacent isolation ≥25dB
Non-adjacent isolation ≥40dB
The HT6000-OD/OM16 is ideal for increasing the fiber capacity between two sites without the need for installing or leasing additional fibers. The complete passive solution requires no power cabling and no configuration; it is a true plug and play solution.
The Mux/Demux enables separation of the active equipment from wavelength multiplexing components. It may be used in conjunction with active optical devices from HTF or from another DWDM-compliant manufacturers.
Performance Parameter
|
Parameter |
Specification |
Unit |
|||
|
Channel Wavelength |
ITU Grid |
nm |
|||
|
Channel Spacing |
100GHz |
Ghz |
|||
|
Channel |
4 |
8 |
16 |
||
|
Channel Passband |
> 0.3 |
nm |
|||
|
Insertion Loss Flatness |
<0.5 |
dB |
|||
|
Insertion Loss |
<1.8 |
<3.0 |
<4.5 |
||
|
Channel Isolation |
Adjacent |
25 |
dB |
||
|
Non-adjacent |
40 |
dB |
|||
|
Polarization Dependent Loss |
<0.1 |
dB |
|||
|
Directivity |
>50 |
dB |
|||
|
Return Loss |
>45 |
dBm |
|||
|
Maximum Power Handling |
26 |
mw |
|||
|
Dimension |
191 ( W ) x 253 ( D ) x 20 ( H ) |
mm |
|||
|
Environment |
Operating Temperature |
-10℃～+60℃ |
℃ |
||
|
Storage Temperature |
-40℃～+85℃ |
℃ |
|||
|
Relative Humidity |
5%~95% Non-condensing |
||||
DWDM MUX/DEMUX
|
Model |
Channel |
ILoss(dB) |
Isolation(dB) |
Wavelength (nm) |
||
|
MU/DMU |
MU+DMU |
Adjacent |
Non-adjacent |
|||
|
HT6000-OM16 |
16ch MUX |
≤3.5 |
≤4.5 |
25 |
40 |
100GHZ ITU Grid C-Band |
|
HT6000-OD16 |
16ch DEMUX |
≤3.5 |
≤4.5 |
25 |
40 |
100GHZ ITU Grid C-Band |
|
HT6000-ODM08 |
8ch MUX and DEMUX |
≤3 |
≤3.5 |
25 |
40 |
100GHZ ITU Grid C-Band |
|
HT6000-OM08 |
8ch MUX |
≤3 |
≤3.5 |
25 |
40 |
100GHZ ITU Grid C-Band |
|
HT6000-OD08 |
8ch DEMUX |
≤3 |
≤3.5 |
25 |
40 |
100GHZ ITU Grid C-Band |
|
HT6000-ODM04 |
4ch MUX and DEMUX |
≤1.8 |
≤2.5 |
25 |
40 |
100GHZ ITU Grid C-Band |
|
HT6000-OM04 |
4ch MUX |
≤1.8 |
≤2.5 |
25 |
40 |
100GHZ ITU Grid C-Band |
|
HT6000-OD04 |
4ch DEMUX |
≤1.8 |
≤2.5 |
25 |
40 |
100GHZ ITU Grid C-Band |
