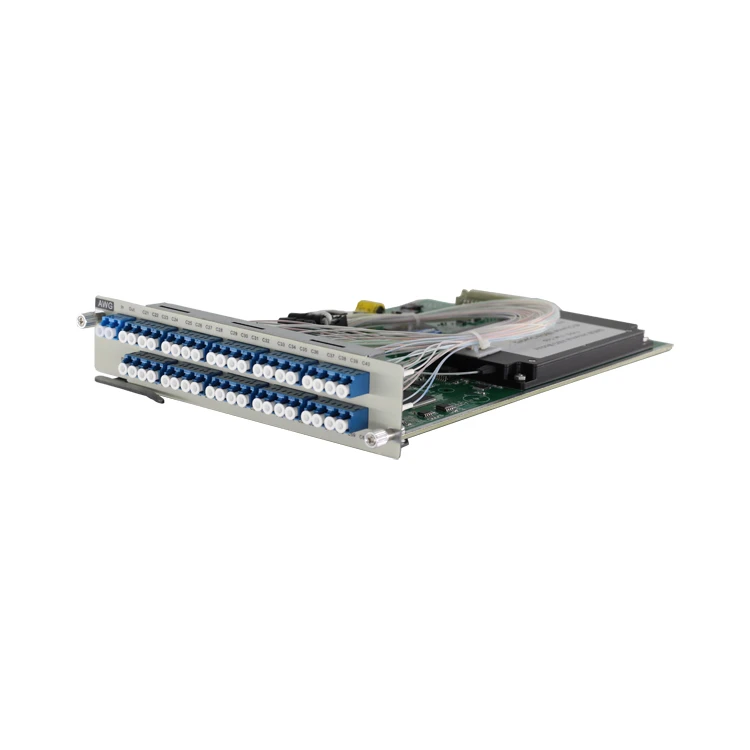

The HT6000-AAWG40 from HTF is a combined passive Forty-Channel 100GHz DWDM multiplexer and de-multiplexer (MUX & DEMUX). It combines standard 100GHZ DWDM ITU grid channels 21 through 60, and applies to 1U chassis,2U chassis and 5U chassis, occupying two service slots.
Highlight:
40 Channel Multiplexer and Demultiplexer (MUX & DEMUX)
Plug and play: requires no configuration
Green product: completely passive, needs no power and no cooling
Low insertion loss, insertion loss ≤6dB, typ 4.5dB
Uniform insertion loss variation over the 40-channels - less than 1dB (typical 0.6dB)per MUX or DEMUX
High channel isolation
Adjacent isolation ≥25dB
Non-adjacent isolation ≥35dB
High reliability, MTBF of 100 years
|
HT6000 Series Chassis Optional |
|||
|
CH04 Chassis: 482.5(W) x 350(D) x 44.5(H) mm |
1U 19-inch chassis |
1 network management slot |
3 universal service slots |
|
CH08 Chassis: 482.5(W) x 350(D) x 89(H) mm |
2U 19-inch chassis |
1 network management slot |
7 universal service slots |
|
CH20 Chassis: 482.5(W) x 350(D) x 222.5(H) mm |
5U 19-inch chassis |
1 network management slot |
19 universal service slots |
|
Power Consumption: 1U <120W, 2U<200W, 5U<400W |
|||
|
Support SNMP, Web, CLI multiple network management modes |
|||
|
Support dual power supply redundancy protection, Power supply support AC: 220V / DC: -48V optional |
|||
