1m (3ft) MPO Female to MPO Female 12 Fibers OS2 9/125 Single Mode Trunk Cable, Type B, Elite, LSZH, Yellow
The new data center optical cable adopts the special structure of circular and small outer diameter, realizing smaller bending radius of trunk optical cable, which makes storage and laying convenient and fast.
MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles
0.35dB IL; MPO Female to MPO Female connector; 3.0mm LSZH bunch cable designed for 40G LR4 PSM, 40G QSFP+ PLR4 optics direct connection and high-density data center.
The 12F MPO-MPO Patch cable/trunk cable is designed for 40G QSFP+ SR4, 40G QSFP+ CSR4 and 100G QSFP28 SR4 optics direct connections and high-density data center.
The 24F MPO-MPO Patch cable/trunk cable is designed for 100GBASE-SR10 CXP/CFP Interconnect Solution,100GBASE-LR4 and high-density data center.
Features
● US Conec MTP® connector, Senko MPO Plus premium connector
● OS2, OM3, OM4 fiber grades (OM1 and OM2 available)
● 0.35dB Elite low loss MTP/MPO connector as well standard versions of 0.6/0.75dB
● Factory terminated and tested
● Allow easy migration from 10GbE to 40GbE or 100GbE
● Pulling eyes are provided as an option to protect the fiber ends during installation
● Low insertion loss, high return loss
● MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
● Economical solution for mass-termination of fiber
● Designed for low loss and standard loss SM and MM applications
● Ruggedized round cable, oval cable and bare ribbon options available
● Color coded housings available to differentiate fiber type, polish type and/or connector grade
● Good in repeatability and exchangeability
Available in three polarity types:
Type-A (Straight Through)
Type-B (Cross, Flipped)
Type-C (Cross Pair, Rollover)
Specifications
Parameters | Unit | Values |
Fiber Mode | - | OS2 9/125μm SM |
Polish Type | - | APC to APC |
Inserstion Loss | dB | 0.35dB Max (0.15dB Typ.) |
Attenuation at 1310nm | dB/km | ≤0.32 |
Jacket OD | mm | 3.0 |
Installation Tensile Load | N | 100 |
Operating Temperature | °C | -10 ~ +70 |
Wavelength | nm | 1310/1550 |
Minimum Bend Radius | mm | 10 |
Return Loss | dB | ≥60 |
Attenuation at 1550nm | dB/km | ≤0.18 |
Cable Jacket | - | LSZH |
Long-Term Tensile Load | N | 50 |
Storage Temperature | ℃ | -40 ~ +85 |
High-quality environmental protection materials
Using the highest fire-proof cable, high temperature resistance, low smoke during combustion has a highly environmental protection role.
Fiber number | Flat 24 | 36 & 48 &72 | 72 | 96 | 144 |
Subunit diameter (mm) | 2.9±0.1 | 2.9±0.1 | 2.9±0.1 | 2.9±0.1 | 2.9±0.1 |
Cable diameter(mm) | (4.2±0.3)x(7.6±0.4) | 9.0±0.3 | 11.2±0.3 | 13.5±0.3 | 17.5±0.3 |
Cable weight(kg/km) | (LSZH 52)/ (PVC 44) | (LSZH 93) /(PVC 86) | (LSZH106)/ (PVC 96) | (LSZH146)/ (PVC 135) | (LSZH260)/ (PVC 224) |
Max.loading(IEC794-1) Installation/Operation | 200/80 | 1000N/300N | |||
Temperature rating Operation&Storage | -20°C ~70°C | ||||

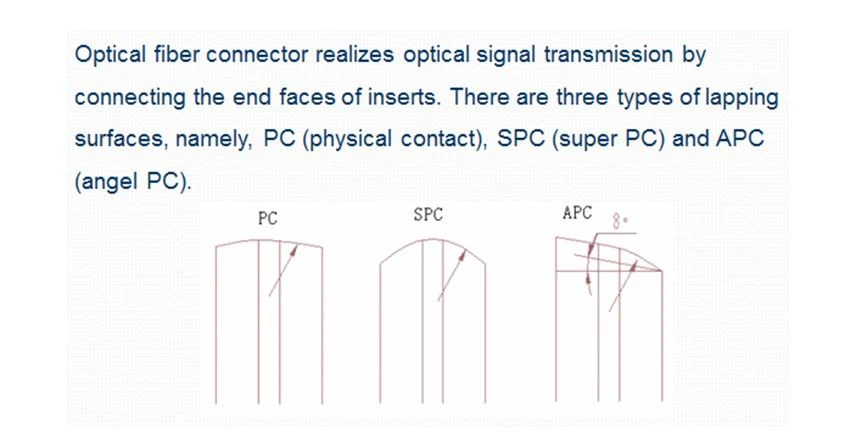

Grinding method
Single mode features
MPO optical fiber jumper can be divided into transition type and non-transition type. There are various types of MPO jumper, including ribbon MPO jumper and bundle MPO jumper. The Po jumper fan out by branches (circular or square) can generally transfer out 2-24 cores 0.9 or 2.0 optical cable branches. The connector type is specified by the customer. FC, LC, SC,ST and other types can be selected. The total length or branch length of MPO jumper and other requirements can be selected It's up to the customer to choose. All kinds of MPO jumper products in the form of MPO optical fiber jumper, MPO transfer jumper, MTP type, MTP 10 Gigabit jumper, multi-mode 10 Gigabit jumper, MPO with branching jumper and other forms of MPO jumper products meet the requirements of telcordia-gr-326, IEC standards and ROHS.
Dust cap design
Close design of dust cap can protect optical fiber connector from pollution and damage, and ensure the normal transmission of network signals.
Supports 40G/100G network connection with high density and accuracy. Save wiring space and improve network maintenance
Optical fiber connectors are used to join optical fibers where a connect/disconnect capability is required. Due to the polishing and tuning procedures that may be incorporated into optical connector manufacturing, connectors are often assembled onto optical fiber in a supplier's manufacturing facility. However, the assembly and polishing operations involved can be performed in the field, for example, to terminate long runs at a patch panel.
Optical fiber connectors are used in telephone exchanges, for customer premises wiring, and in outside plant applications to connect equipment and cables, or to cross-connect cables.
FAQ
Q: What is the difference between simplex and duplex fiber optic cable?
A: A simplex fiber cable consists of a single strand of glass of plastic fiber. A duplex fiber cable consists of two strands of glass or plastic fiber.
Q: How do I know my shipping charges before I place the order?
A: To find out shipping the charge before placing the order, you may contact our customer services
Q: Multimode, singlemode, laser optimized - What does it all mean?
A: In today's world of fiber optics many choices are available when choosing fiber optic cable types. Depending on the type of fiber cable and transceiver specification, different distances are supported per technology.
Size of the fiber core, bandwidth requirements, and transceiver wavelengths (i.e. 850m, 1550nm) are some of the considerations when designing a network with fiber.
