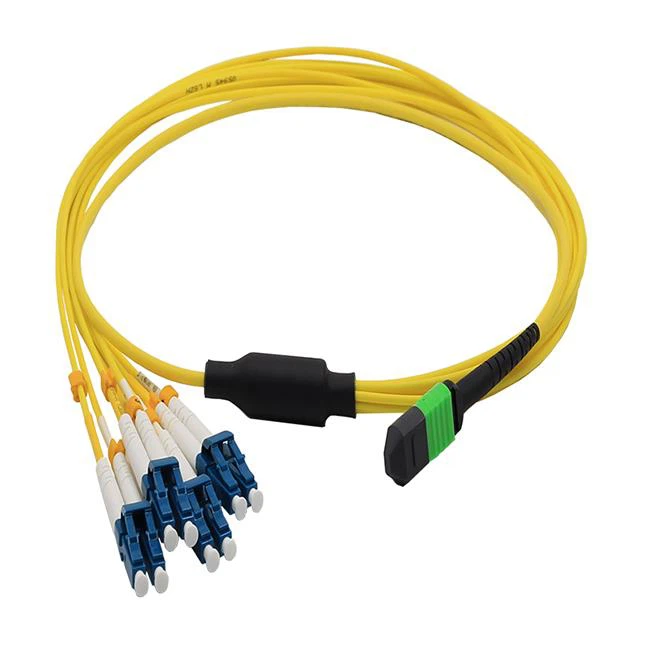

Patch Cord 9 and 125 MPO jumper LC 8 Fibers Cable Features
US Conec MTP® connector, Senko MPO Plus premium connector
OS2, OM3, OM4 fiber grades (OM1 and OM2 available)
0.35dB Elite low loss MTP/MPO connector as well standard versions of 0.6/0.75dB
Factory terminated and tested
Allow easy migration from 10GbE to 40GbE or 100GbE
Pulling eyes are provided as an option to protect the fiber ends during installation
Available for
G657A1 MPO-LC, MPO-SC，MPO-FC，MPO-SC，MPO-ST，MPO-E2000
G657A2/B2 MPO-LC, MPO-SC，MPO-FC，MPO-SC，MPO-ST，MPO-E2000
G657B3 MPO-LC, MPO-SC，MPO-FC，MPO-SC，MPO-ST，MPO-E2000
OM1 62.5/125 MPO-LC, MPO-SC，MPO-FC，MPO-SC，MPO-ST，MPO-E2000
OM2 50/125 MPO-LC, MPO-SC，MPO-FC，MPO-SC，MPO-ST，MPO-E2000
OM3 50/125 MPO-LC, MPO-SC，MPO-FC，MPO-SC，MPO-ST，MPO-E2000
OM4 50/125 MPO-LC, MPO-SC，MPO-FC，MPO-SC，MPO-ST，MPO-E2000
OM5 50/125 MPO-LC, MPO-SC，MPO-FC，MPO-SC，MPO-ST，MPO-E2000
Product Specifications
|
Connector A |
MPO Female (pinless) |
Connector B |
LC UPC Duplex |
|
Fiber Mode |
OS2 SMF 9/125μm |
Wavelength |
1310/1550nm |
|
MPO Connector IL |
0.35dB Max(0.15dB Typ.) |
LC Connector IL |
≤0.2dB |
|
MPO Connector RL |
≥60dB |
LC Connector RL |
≥50dB |
|
Attenuation at 1310nm |
≤0.32dB/km |
Attenuation at 1550nm |
≤0.18dB/km |
|
Jacket OD |
3.0mm |
Fan-Out Diameter |
2.0mm |
|
Installation Tensile Load |
100 N |
Long-Term Tensile Load |
50 N |
|
Cable Jacket |
LSZH |
Fiber Count |
8 Fibers |
|
Operating Temperature |
-10°C to +70°C |
Storage Temperature |
-40°C to +85°C |
LC/SC/FC/ST End-Face Geometry 3D Interference Index
|
Items |
Connector |
PC End-face |
APC End-face |
|
Radius of Curvature |
SC/FC/ST |
10~25 mm |
5~12 mm |
|
LC/MU |
7~25 mm |
5~15 mm | |
|
Apex Offset |
≤50 um |
||
|
Fiber Spherical Height |
+/- 100 nm |
||
|
Angular Offset |
------ |
8°± 0.5° |
|
End-face Quality (LC/SC/FC/ST SM)
|
Zone |
Range (μm) |
Scratches |
Defects |
Reference |
|
A: Core |
0 to 25 |
None |
None |
IEC 61300- 3-35:2015 |
|
B: Cladding |
25 to 115 |
None |
None |
|
|
C: Adhesive |
115 to 135 |
None |
None |
|
|
D: Contact |
135 to 250 |
None |
None |
|
|
E: Rest of ferrule |
None |
None | ||
End-face Quality (LC/SC/FC/ST MM)
|
Zone |
Range (μm) |
Scratches |
Defects |
Reference |
|
A: Core |
0 to 65 |
None |
None |
IEC 61300-3 -35:2015 |
|
B: Cladding |
65 to 115 |
None |
None |
|
|
C: Adhesive |
115 to 135 |
None |
None |
|
|
D: Contact |
135 to 250 |
None |
None |
|
|
E: Rest of ferrule |
None |
None | ||
Direct Connection for 40GBASE-LR4 QSFP+ Optics to 4x 10GBASE-LR SFP+ Optics with MPO Harness Cable
How to breakout 40G link into 4x 10G for going to different purpose? A type-B female MPO/MTP-4x LC harness cable is required. The 4x 10GBASE-LR SFP+ transceivers interconnection with 1x 40GBASE-LR4 QSFP+ transceivers by one MPO-4LC harness cable directly.
Low insertion loss LC connector
Imported high-quality ceramic plugs are used to reduce transmission loss and enhance transmission stability.
Most optical fiber connectors are spring-loaded, so the fiber faces are pressed together when the connectors are mated. The resulting glass-to-glass or plastic-to-plastic contact eliminates signal losses that would be caused by an air gap between the joined fibers.
Performance of optical fiber connectors can be quantified by insertion loss and return loss.
Application of 8-core structure
8-core joint parallel processing applications, using 12-core joints, hollow 4-core.
On one end, the cable has an MTP brand connector, housing 12 fibers, which breaks out to 12 duplex LC connectors. Like the MTP brand connector, the LC connector is also known for its space-saving capabilities, and features a compact design. These two connector styles, together in the same cable, help increase port density and data throughput performance quality.
With Singlemode OS2 fiber optics, experience data transmissions over a 1Gbps link with a 9/125 micron glass fiber over a distance of up to 10,000 meters at a wavelength of 1310nm. For a 10Gbps link, you can transfer data over a distance of up to 5,000 meters at 1310nm, and 30,000 meters at 1550nm.
FAQ:
Q: Can we get the sample from you ?
A: Sure we are pleased to provide the samples for clients' evalution. For small amount, we will provide the sample for free, clients burden the delivery cost. For large amount, clients need pay for the sample fee in FOB base and burden the delivery cost. However, usually, the sample fees will be charged after order confirmed.
Q: Does this patch cable come in the typical teal color or is it orange?
A: Orange
Q: Can I make 10 meters?
A: Certainly!
