General Description
HTSX-B273396Kx/ HTSX-B332796Kx transceivers provide a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, and received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and warning flags, which alerts end-users when particular operating parameters are outside of a factory set normal range.
Model type | BIDI-SFP-10G-KR | Brand | HTFuture |
Encapsulation | SFP+ | Data Rate | 11.1Gb/s |
Wavelength | TX1270nm/RX1330nm TX1330nm/RX1270nm | Reach | 60km |
Interface | BIDI LC | LD | DFB |
Cable Type | SMF | DDM Support | Yes |
Tx power | 0~5dBm | Rx Sens | <-20dBm |
Temperature | 0~70°C (32~158°F) | Quality guarantee | 3 years |
Part Number Ordering Information
| Part Number | Data Rate (Gb/s) | Wavelength (nm) | Transmission Distance(km) | Temperature (℃) (Operating Case) |
HTSX-B273396Kx | 10.3125 | 1270Tx/1330Rx | 60km SMF | 0~70 commercial |
HTSX-B332796Kx | 10.3125 | 1330Tx/1270Rx | 60km SMF | 0~70 commercial |
Features
● Up to 11.1Gb/s data rate
● 2-wire interface with integrated Digital Diagnostic monitoring
● Up to 60km transmission on SMF
● Single +3.3V power supply
● Metal enclosure, for lower EMI
● Maximum power consumption 1.5W
● SFF-8472 MSA compliant &SFF-8431
● Operating case temperature
Commercial: 0 ~ 70℃
Applications
● Back to Back
● 10GBASE-ER/EW
● 10G Ethernet

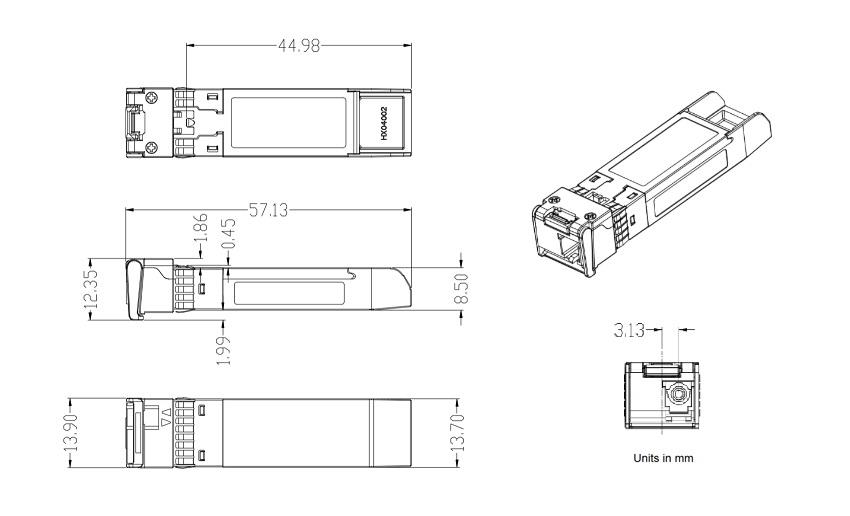

Mechanical Dimensions
FAQ
1. Question: Does this support Netgear?
Answer: Yes, the Netgear compatible 10GBase-T module supports Netgear.
2. Question: What cable type is needed for the 40G LR4 transceivers?
Answer: The HTFuture 40GBASE-LR4 QSFP+ transceivers use duplex single mode fiber patch cables with LC/UPC connectors.
3. Question: What Is Multimode SFP?
Answer: Multi-mode thread (MMF) uses a very large core and usually uses more wavelengths. Therefore, the optics used in the MMF has the ability to collect light from the laser. In practice, this means that the optics is cheaper. The generic multimodal SFP (MMF SFP) runs along the 850nm wavelength and is only used for a short distance transduction in the range of 100m to 500m. Although it cannot walk long distances, many types of optical alarms can be transported. Their color-coded bale clamp and color bulb are black and the optical fiber patch cord used usually has an orange color.
4. Question: What is the difference Between SFP and BIDI SFP?
Answer: As we know, a common SFP transceiver is generally with two ports, one is TX port which is used to transmit the signal, and the other one is RX port which is used to receive signal. Unlike common SFP transceiver, BIDI SFP transceiver is only with one port which uses an integral WDM coupler to transmit and receive signals over a single strand fiber. In fact, the compact SFP is a 2-channel BIDI SFP, which integrates two BIDI SFPs in one SFP module. Therefore, a compact SFP is also with two ports as the common SFP.
